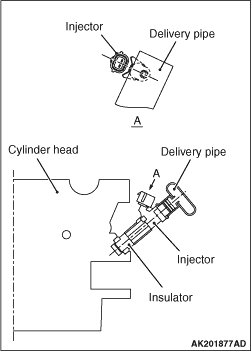

1.Fit the insulator onto the injector.
| caution |
Take care that no engine oil enters the delivery pipe.
|
2.Apply a little fresh engine oil to the injector O-ring.
Then, insert the injector, center to center, into the injector mounting hole on the delivery
pipe.
3.Make sure that the injector connector projection is properly engaged with the delivery
pipe.
Turn the injector to ensure engagement if necessary.
4.Check that the injector rotates smoothly. If it does not, remove it and check the
injector O-ring for damage. If damage is evident, replace the O-ring, reinstall the injector to
the delivery pipe and check it again for smooth rotation.

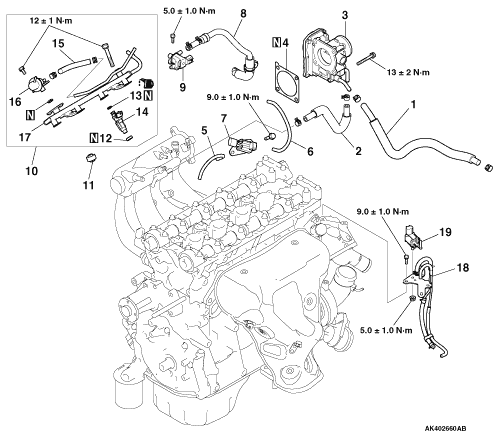

5.Install the delivery pipe to the cylinder head.
|
|
Install the throttle body gasket, facing the gasket’s protruded portion in the
illustrated position.
|
)
)
)
