1.
| caution |
Do not use special tool oil pan FIPG cutter (MD998727) in area A of the engine oil pan.
Using the special tool in area A may cause deformation of the front case because the front case
is made of aluminium.
|
Tap the special tool MD998727 into the range (B) between the cylinder block and the engine
oil pan, and then slide the tool sideways.
| note |
If any sounding parts interfere with the removal, there is no need to use the special
tool.
|

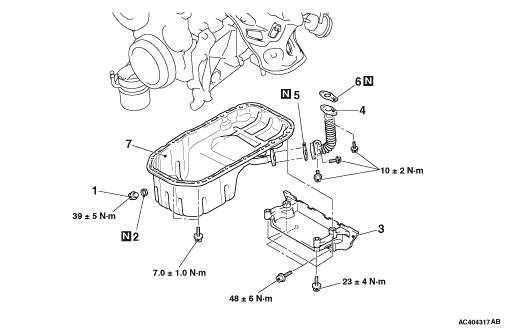

2.Remove the engine oil pan.
|
|
|
1.Remove sealant from the engine oil pan, front case and cylinder block surfaces.
|
|
2.Apply a bead of the sealant to the cylinder block mating surface of the engine oil pan
as shown.
Specified sealant: ThreeBond 1207F or equivalent
| note |
Install the engine oil pan immediately after applying sealant.
|
3.
| caution |
After the installation, until a sufficient period of time (one hour or
more) elapses, do not apply the oil or water to the sealant application area or start the engine.
|
Tighten the engine oil pan mounting bolts to the specified torque.
Tightening torque: 7.0 ± 1.0 N·m
|
|
Install the gasket as its projection is in the direction shown.
|
|
With the print area on the gasket facing to the pipe, install the gasket so that the projection
is in the direction shown in the figure.
|
|
Replace the gasket with a new gasket. Install the new gasket in the direction shown in
the illustration.
|
)
)
)
)
)
)
)
