REMOVAL AND INSTALLATION <3A9>


Pre-removal Operation
  • Engine Oil Draining (Refer to GROUP 12, On-vehicle Service - Engine Oil Replacement ).
  • Crankshaft Pulley Removal (Refer to ).

 Post-installation Operation
  • Crankshaft Pulley Installation (Refer to ).
  • Engine Oil Refilling (Refer to GROUP 12, On-vehicle Service - Engine Oil Replacement ).

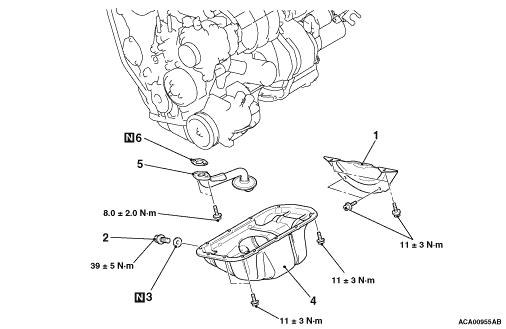

Removal steps


·
 Oil level gauge and guide assembly


1.
 Bell housing cover


2.
 Engine oil pan drain plug


3.
 Engine oil pan drain plug gasket
<<A>>
 >>A<<
 4.
 Engine oil pan


5.
 Engine oil screen assembly


6.
 Gasket

REMOVAL SERVICE POINT

<<A>> ENGINE OIL PAN REMOVAL
1.Remove the engine oil pan mounting bolts.

2.Use special tool oil pan FIPG cutter (MD998727) to remove the engine oil pan.

INSTALLATION SERVICE POINTS

>>A<< ENGINE OIL PAN INSTALLATION
1.Remove sealant from the engine oil pan and cylinder block surfaces.

2.
caution As oil leak is likely to occur at both ends of the rear side of the engine oil pan, be sure to apply the specified sealant as shown.

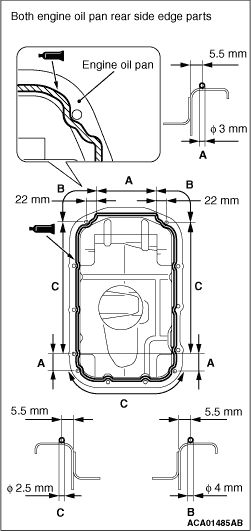

Apply the sealant without any gap to the mating surface of engine oil pan as shown in the figure, and install the engine oil pan to the cylinder block assembly.
Specified sealant: ThreeBond 1217G or equivalent
note Install the engine oil pan immediately after applying sealant.
3.
caution After the installation, until a sufficient period of time (one hour or more) elapses, do not apply the oil or water to the sealant application area or start the engine.
Tighten the engine oil pan mounting bolts to the specified torque.
Tightening torque: 11 ± 3 N·m
