SPECIAL TOOLS


Tool
 Number
 Name
 Use


MB992080

    a: MB992081
    b: MB992082
 Belt tension meter set

    a: Belt tension meter
    b: Microphone assembly
 Drive belt tension check

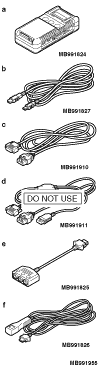

MB991955

    a: MB991824
    b: MB991827
    c: MB991910
    d: MB991911
    e: MB991825
    f: MB991826
 M.U.T.-III sub assembly
M.U.T.-III sub assembly

    a: Vehicle communication interface (V. C. I.)
    b: M.U.T.-III USB cable
    c: M.U.T.-III main harness A (Vehicles with CAN communication system)
    d: M.U.T.-III main harness B (Vehicles without CAN communication system)
    e: M.U.T.-III adapter harness
    f: M.U.T.-III trigger harness
caution For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.

  • Checking the ignition timing
  • Checking the idle speed


MB991992
 Torque wrench adaptor
 Removal and installation of inlet camshaft sprocket mounting bolt


MD998727
 Oil pan FIPG cutter
 Engine oil pan removal


MD998781
 Flywheel stopper
 Supporting the flywheel assembly


MB992207
 Oil seal guide
 Crankshaft rear oil seal case assembly installation <134>


MB991993
 Crankshaft front oil seal guide
 Crankshaft front oil seal installation


MB990699
 Differential oil seal installer


MB991895
 Engine hanger
 When the engine hanger is used: Supporting the engine assembly during removal and installation of the transmission assembly


MB992004 (two sets)

    a: MB991924 (one set)
 Engine hanger attachment set

    a: Engine hanger attachment


MB991928

    a: MB991929
    b: MB991930
    c: MB991931
    d: MB991932
    e: MB991933
    f: MB991934
 Engine hanger

    a: Joint (50) × 2
    b: Joint (90) × 2
    c: Joint (140) × 2
    d: Foot (standard) × 4
    e: Foot (short) × 2
    f: Chain and hook assembly


MB992005 (two pieces)

    a: MB991925 (one piece)
 Engine hanger attachment set

    a: Engine hanger attachment


MB992000
 Crankshaft adapter
 Cranking of the engine after the crankshaft pulley removal


MB991454
 Engine hanger balancer
 Supporting the engine and transmission assembly
note Special tool MB991454 is a part of engine hanger attachment set MB991453.


MB991527
 Hanger
