1.In order to protect the body side, apply protection tape to adjacent areas around
the installed side air dam.
|
|
|
2.Remove the side air dam attaching clips.
|
|
|
3.
| caution |
Do not allow the piano wire to contact the side sill
on the body side.
|

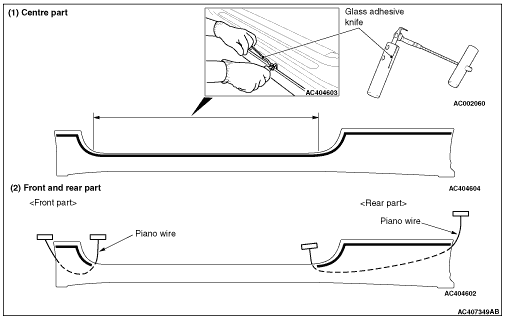

Using a piano wire and glass adhesive knife, cut off the side air dam adhesive as shown
in the illustration.
(1)
First, cut off centre part of the adhesive by using a glass adhesive knife.
(2)
Next, cut off front and rear parts of the adhesive by using a piano wire.
|
|
|
4. Remove the side air dam.
|
|
|
5.
| caution |
- Be careful not to remove more adhesive
than is necessary.
- Be careful also not to damage the paintwork on the body surface with the knife.
If the paintwork is damaged, repair the damaged area with repair paint or anti-rust agent.
|
|
|
|
6. Use a knife to cut away the remaining adhesive on body side uniformly so that the
adhesive thickness is within 2 mm.
|
|
|
7. When re-using the side air dam, use a knife to cut away the remaining adhesive on
the side air dam uniformly so that the adhesive thickness is within 2 mm.
|
|
|
1.<When using a new side air dam.>
| caution |
Leave the degreased parts for 3 or more minutes to dry well,
before starting on the next step. Do not touch the degreased parts.
|
(1)
Use isopropyl alcohol to degrease the side air dam.
(2)

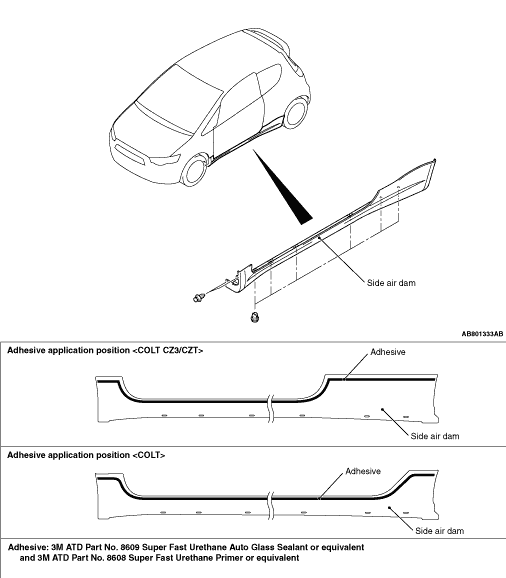

Apply the primer and adhesive.
(3)
Install the side air dam by the same procedure as for the windshield.
|
|
|
1.<When re-using the side air dam.>
| caution |
Leave the degreased parts for 3 or more minutes to dry well,
before starting on the next step. Do not touch the degreased parts.
|
(1)
Use isopropyl alcohol to degrease the side air dam.
(2)
Apply the adhesive.
(3)
Install the side air dam.
|
|
|

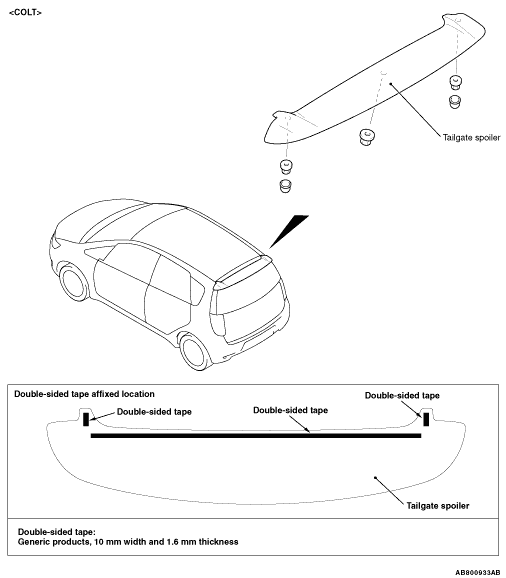

1.In order to protect the tailgate window glass, apply protection tape to adjacent areas
around the installed tailgate spoiler.
|
|
|
2.Apply protection tape onto the tailgate and tailgate spoiler to avoid the spoiler
from dropping.
|
|
|

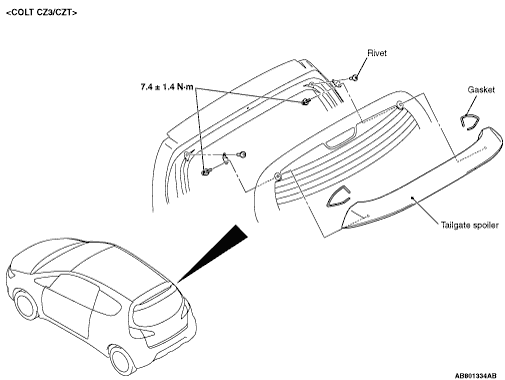

3.Remove the tailgate spoiler attaching screws.
|
|
4.
| caution |
Do not allow the piano wire to contact the tailgate window glass.
|

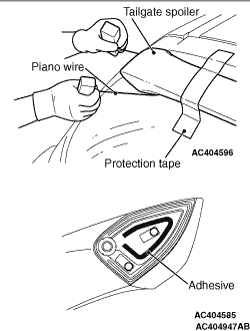

Using the piano wire, cut off the tailgate spoiler adhesive as shown in the illustration.
5.Remove the tailgate spoiler.
6.Remove the damaged gasket (when re-using the spoiler).
7.
| caution |
- Be careful not to remove more adhesive
than is necessary.
- Be careful also not to damage the paintwork on the tailgate surface with a knife.
If the paintwork is damaged, repair the damaged area with repair paint or anti-rust agent.
|
When re-using the tailgate spoiler and tailgate window glass, use a knife to cut away
the remaining adhesive uniformly so that the adhesive thickness is within 2 mm.
|
|

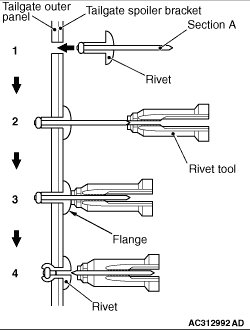

Use a drill (4.0 mm) to break the rivet, and remove it.
|
|
Use a rivet tool to attach the rivet by the following procedures.
1.Insert the rivet into the tailgate outer panel and tailgate spoiler bracket.
2.Place the rivet tool over section A of the rivet.
3.While pushing the flange surface of the rivet with the rivet tool, press the handle
of the tool.
4.Thin part of section A of the rivet will break and it will be attached in place.
|
|
1.<When using a new tailgate spoiler.>
| caution |
Leave the degreased parts for 3 or more minutes to dry well,
before starting on the next step. Do not touch the degreased parts.
|
(1)
Use isopropyl alcohol to degrease the tailgate spoiler.
(2)
Install the gasket to the tailgate spoiler.
(3)
Apply the primer and adhesive.
(4)
When installing a new tailgate window glass, use a drill to open a through-hole on the
bracket where the spoiler attaching bolt is inserted.
(5)
Install the tailgate spoiler by the same procedure as for the windshield.
|
|
1.<When re-using the tailgate spoiler.>
| caution |
Leave the degreased parts for 3 or more minutes to dry well,
before starting on the next step. Do not touch the degreased parts.
|
(1)
Use isopropyl alcohol to degrease the tailgate spoiler.
(2)
Install the gasket to the tailgate spoiler.
(3)
Apply the adhesive.
(4)
When installing a new tailgate window glass, use a drill to open a through-hole on the
bracket where the spoiler attaching bolt is inserted.
(5)
Install the tailgate spoiler.
|
)
)
)
)
)
)
)
)
