1.If the striker is not engaged with the latch properly, install an temporary bolts instead
of the striker mounting bolt, and use the special tool remover bar (MB990939) and a hammer to tap
the bolt to the desired direction.
Tailgate striker mounting screw tightening torque: 25 ± 2 N·m
|
|
2.If the clearance between the tailgate and the body is uneven, loosen the tailgate-side
tailgate hinge mounting bolts to adjust it.
Tailgate hinge mounting bolts tightening torque: 7.4 ± 1.4 N·m
|
|

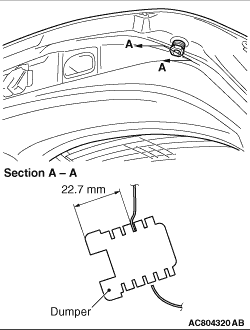

Rotate the damper by using arrow mark on the damper as a guide to adjust the tailgate
height. The damper height is altered by roughly 3 mm when the damper is rotated once.
| note |
If a rattling noise is heard due to the vibration of the tailgate when the vehicle is
being driven, adjust the damper height until the damper is seated on the vehicle body.
|
|
|
Rotate the damper by using arrow mark on the damper as a guide to adjust the tailgate
height. The damper height is altered by roughly 4 mm when the damper is rotated once.
| note |
If a rattling noise is heard due to the vibration of the tailgate when the vehicle is
being driven, adjust the damper height until the damper is seated on the vehicle body.
|
|
)
)
)
)
