1.
| caution |
Attach protection tape to the fender and door edges where the hinge is
installed.
|
When the clearance between the door and the body is uneven
(1)
Remove the front pillar pad <Front door <COLT>> <Except
1500 MPI-T/C <COLT CZ3/CZT>.
(2)

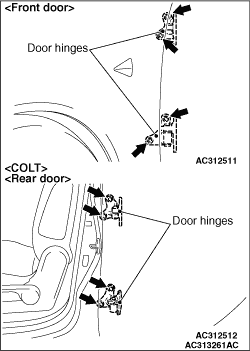

Loosen the body-side door hinge mounting bolts.
|
|
| note |
Install the tool to the bolts as shown.
|
|
(3)
Move the door to adjust until the clearance around the door is even.
Door hinge mounting bolts tightening torque: 26 ± 2 N·m
2.When the door is not flush with the vehicle body surface.
(1)
Remove the front pillar pad <Front door <COLT>> <Except
1500 MPI-T/C <COLT CZ3/CZT>.
(2)
Loosen the door-side hinge mounting bolts.
(3)
Move the door to adjust until the door is flush with the vehicle body.
Door hinge mounting bolts tightening torque: 26 ± 2 N·m
|
|
3.When the door is stiff to lock and unlock:
(1)
Adjustment by using the striker (toward the inside of the vehicle and vertical direction)
Install a temporary bolts instead of the striker mounting bolts, and use special tool
brass bar (MB990939) and a hammer to tap the bolt to the desired direction.
(2)
Adjustment by using the striker (toward the outside of the vehicle)
Use special tools sliding hammer (MB990211) and body puller (MB990243) to pull the striker
toward the outside of the vehicle.
Door striker mounting bolts tightening torque: 24 ± 2 N·m
|
|

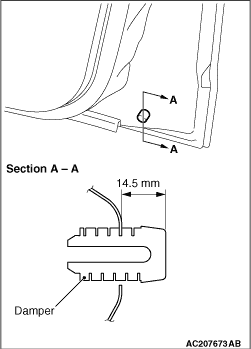

Rotate the damper by using arrow mark on the damper as a guide to adjust the front door
height. The damper height is altered by roughly 3 mm when the damper is rotated once.
| note |
If a rattling noise is heard due to the vibration of the door when the vehicle is being
driven, adjust the damper height until the damper is seated on the vehicle body.
|
|
|
Use the arrow mark on the damper as a guide for making the damper seated on the body correctly,
and rotate the damper to adjust the front door height. The damper height is altered by roughly
4 mm when the damper is rotated once.
| note |
If a rattling noise is heard due to the vibration of the door when the vehicle is being
driven, adjust the damper height until the damper is seated on the vehicle body.
|
|
)
)
)
)
)
