Hood hinge mounting nut tightening torque: 20 ± 2 N·m
Hood hinge mounting bolt tightening torque: 20 ± 2 N·m
HOOD FIT ADJUSTMENT |
|
1.If the clearance between the hood and body is uneven, loosen the hood hinge mounting nut
and hood hinge mounting bolt, move the hood to and fro, and left and right to adjust the hood
so the clearance around the hood is even. Hood hinge mounting nut tightening torque: 20 ± 2 N·m Hood hinge mounting bolt tightening torque: 20 ± 2 N·m |
) |

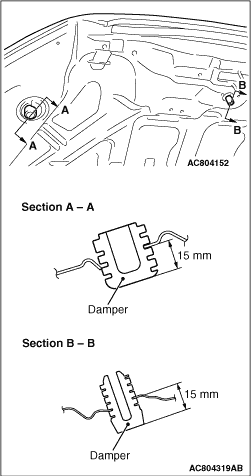

2.Turn the damper to the shown dimension to adjust the hood height. If the hood height is
still not even, turn the damper again until the height is even.
|
) |
3.If the hood level, floating, unlock, lock is heavy check the cord of the release cable,
loosen the hood latch mounting bolts, lift the hood latch and adjust the bite with the hood striker. Hood latch mounting bolts tightening torque: 7.4 ± 1.4 N·m |
