LOCATION OF SYNTHETIC-RESIN PARTS

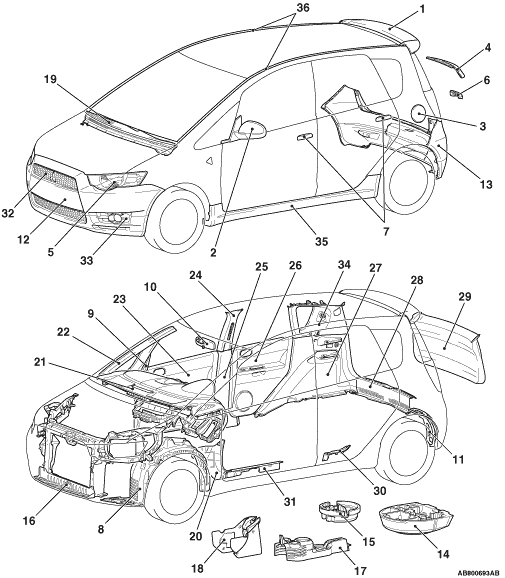

The location and material of each of the principal synthetic-resin parts are shown below.

<COLT>

No.	Part name	Material	Abbreviation of material	Heat-resistant temperature (°C)
1	Tailgate spoiler	Acrylonitrile styrene acrylate	ABS	80
2	Door mirror
3	Fuel filler lid panel	66polyamide and polymer of 6I/6T polyamide	PA66+PA6I/6T	80
4	Rear wiper arm	Polybutylene terephthalate (30%)	PBT-GF30	80
5	Headlamp	Polycarbonate	PC	120
6	Tailgate outside handle	Polycarbonate+Polyethylene terephthalate	PC+PET	120
7	Door outside handle
8	Splash shield	Polypropylene	PP	80
9	Delta cover
10	Inside rear view mirror
11	Splash shield rear
12	Front bumper	Rubber denatured polypropylene	PP+E/P	80
13	Rear bumper
14	Cargo floor box	Polypropylene foam	PP-FOAM	80
15	Inside spare wheel box
16	Headlamp support assembly	Glass reinforced polypropylene (30%)	PP-GF30	90
17	Floor console	Talc filled rubber modified polypropylene (10%)	PP+P/E-TD10	90
18	Console side cover
19	Front deck garnish	Talc filled polypropylene (10%)	PP-TD10	90
20	Cowl side trim
21	Instrument panel
22	Front pillar trim
23	Front door trim
24	Centre pillar trim upper
25	Centre pillar trim lower
26	Rear door trim
27	Quarter trim lower
28	Rear end trim
29	Tailgate trim
30	Rear scuff plate
31	Front scuff plate
32	Radiator grille	Talc filled polypropylene (20%)	PP-TD20	120-130
33	Fog lamp bezel
34	Quarter trim upper
35	Side air dam <T/C>	Polyurethane	PUR	80
36	Roof drip moulding	Poly vinyl chloride	PVC	80

note

A slash (/) in the material symbol indicates that two different materials make two-layer construction. A plus sign (+) indicates that the two different materials mix each other.
The indicated Heat-Resistant Temperature for parts which are composed of two or more types of material is the value for the material with the lowest Heat-Resistant Temperature.
The material symbols for synthetic-resin parts are embossed on the parts in hidden places.

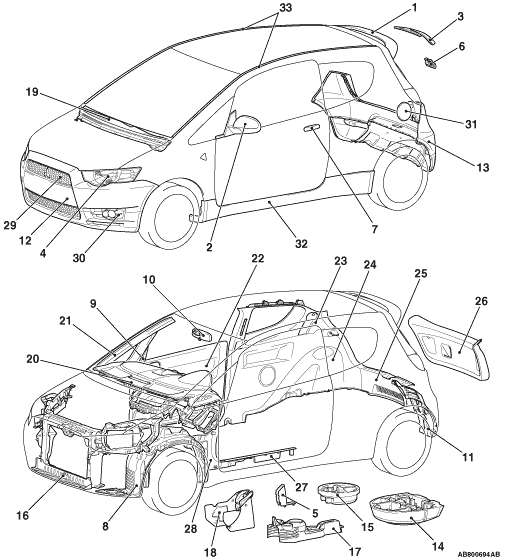

No.	Part name	Material	Abbreviation of material	Heat-resistant temperature (°C)
1	Tailgate spoiler	Acrylonitrile butadiene styrene	ABS	80
2	Door mirror
3	Rear wiper arm	Polybutylene terephthalate (30%)	PBT-GF30	80
4	Headlamp	Polycarbonate	PC	120
5	Floor console accessory panel
6	Tailgate outside handle	Polycarbonate+Polyethylene terephthalate	PC+PET	120
7	Door outside handle
8	Splash shield	Polypropylene	PP	80
9	Delta cover
10	Inside rear view mirror
11	Splash shield rear
12	Front bumper	Rubber denatured polypropylene	PP+E/P	80
13	Rear bumper
14	Cargo floor box	Polypropylene foam	PP-FOAM	80
15	Inside spare wheel box
16	Headlamp support assembly	Glass reinforced polypropylene (40%)	PP-GF40	90
17	Floor console	Talc filled rubber modified polypropylene (10%)	PP+P/E-TD10	90
18	Console side cover
19	Front deck garnish	Talc filled polypropylene (10%)	PP-TD10	90
20	Instrument panel
21	Front pillar trim
22	Front door trim
23	Quarter trim upper
24	Quarter trim lower
25	Rear end trim
26	Tailgate trim
27	Front scuff plate
28	Cowl side trim
29	Radiator grille	Talc filled polypropylene (20%)	PP-TD20	120 - 130
30	Fog lamp bezel
31	Fuel filler lid panel	Polyphenylene ether+polyamide	PPE+PA	185
32	Side air dam	Polyurethane	PUR	80
33	Roof drip moulding	Poly vinyl chloride	PVC	80

note

A slash (/) in the material symbol indicates that two different materials make two-layer construction. A plus sign (+) indicates that the two different materials mix each other.
The indicated heat-resistant temperature for parts which are composed of two or more types of material is the value for the material with the lowest heat-resistant temperature.
The material symbols for synthetic-resin parts are embossed on the parts in hidden places.
