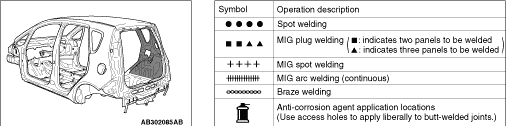

| note | Refer to the Quarter Outer section on  for the welding
point with quarter outer panel and rear combination lamp housing panel. |
)
NOTE ON REPAIR WORK |
REMOVAL |
) |

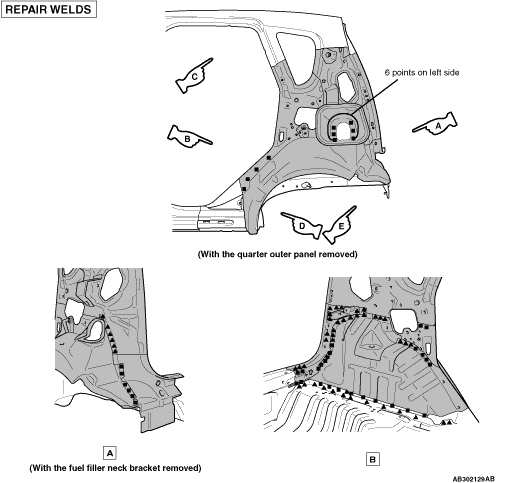

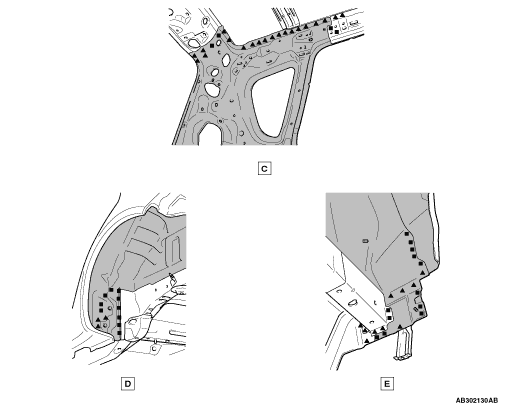

When removing the quarter panel extension lower inner, cut the welding points shown in
the figure so that it is pulled out easily. |
INSTALLATION |
) |
When assembling the new fuel filler neck bracket, apply in advance body sealant to the
areas shown in the figure. |
