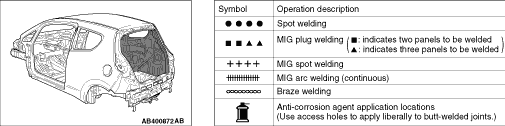

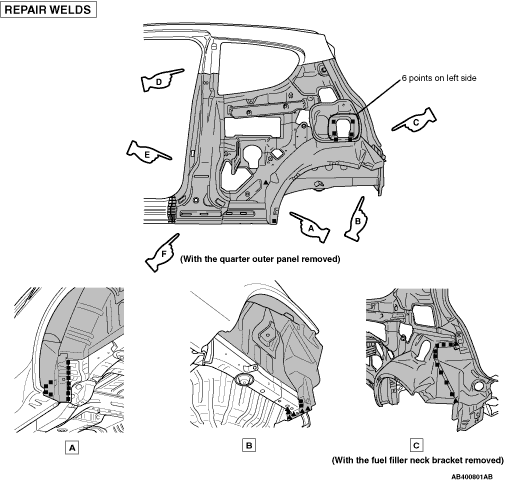

| note | Refer to the Quarter Outer section on  for the welding
point with quarter outer panel and rear lamp housing panel. |
)
INSTALLATION |
) |
1.When assembling the new fuel filler neck bracket, apply in advance body sealant to the
areas shown in the figure. |
) |

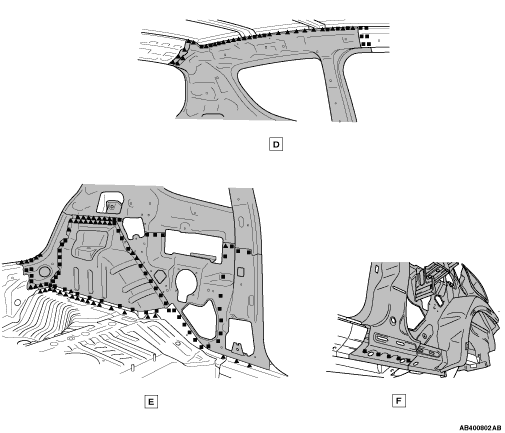

2.When replacing the side sill outer reinforcement, cut it at the range shown in the figure.
However, do not cut the side sill outer reinforcement at the range that is within 50 mm away from
the side outer panel cut line. |
