| note |

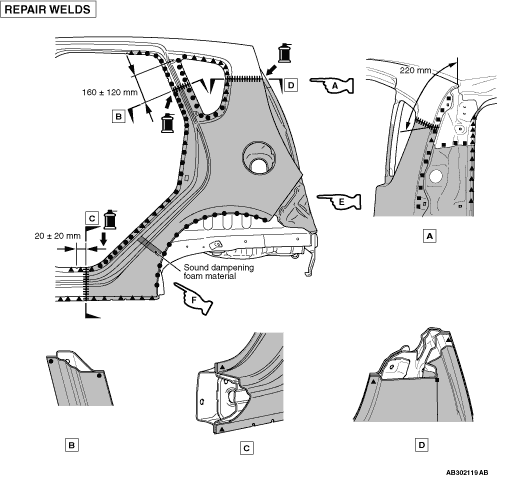

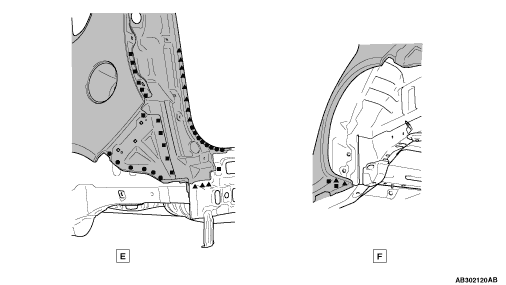

Partial replacement is possible depending on the range of damage.
|
|
|
1.Before assembling the quarter outer panel, attach urethane foam in the area shown to prevent
the sound dampening foam material from flowing out.
|
|

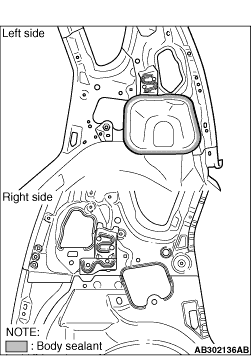

2.When assembling the quarter outer panel, apply in advance body sealant to the areas shown
in the figure.
|
|
3.After assembling the quarter outer panel, seal the hole and flange with bolt and sheet-metal
tape, and then fill the hole with sound dampening foam material as shown in the figure.
Sound dampening foam material: 3M ATD Part No.08463
|
|
4.Wait 2 hours after filling the sound dampening foam material to remove the bolt and aluminium
tape, then melt the sound dampening foam material with a soldering gun so a clip, etc. can thoroughly
be inserted in the hole filled with sound dampening foam material.
|
)
)
)
)
)
)
)
)
