NOTE ON REPAIR WORK |
INSTALLATION |
) |

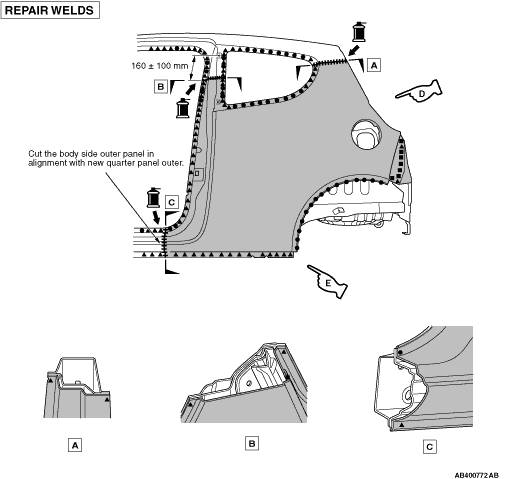

1.To reinforce the strength of the gate pillar cut area, cut the side outer panel 40 mm
above the cut-out part. |
) |

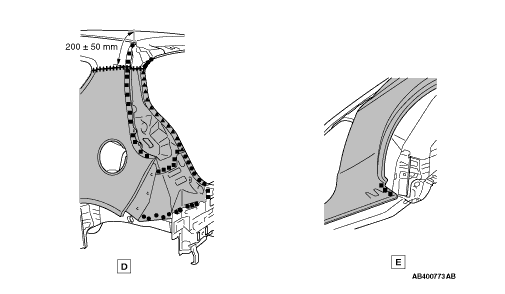

2.When assembling the quarter outer panel, apply in advance body sealant to the areas shown
in the figure. |
