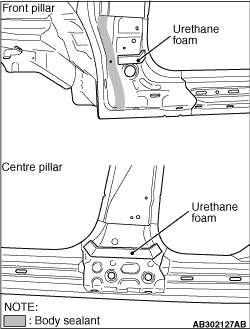

When assembling the front floor side sill outer, apply body sealant in the area shown
in the figure of the front pillar. Attach in advance urethane foam to the front pillar and the
centre pillar as shown in the figure as an alternative to the sound dampening foam material.
| note |
A body loose panel cushion (genuine part number; 7260A114) should be used as the urethane
foam. Cut this cushion to a height of 30 mm and to a thickness which it can fill the space between
the front floor side sill outer and inner at.
|
|
)
)
)
)
