| caution | When repairing the area using sound
dampening foam material do not use firing tools since the sound dampening foam material may
burn. |
)
)

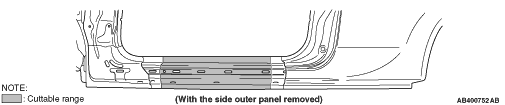

| note | Partial replacement of side sill outer reinforcement is possible depending on the range
of damage. Cut the side sill reinforcement so that it displaces 50 mm from the butt welding
area with the side outer panel. |

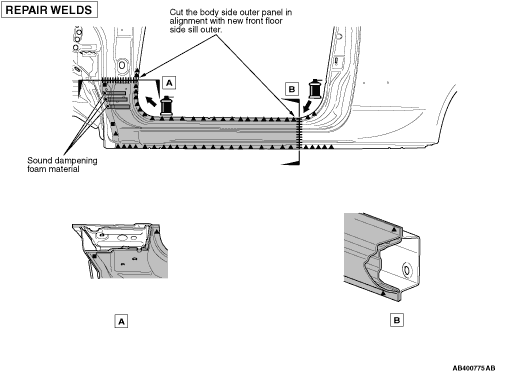

NOTE ON REPAIR WORK |
INSTALLATION |
) |
When assembling the front floor side sill outer, apply body sealant in the area shown
in the figure of the front pillar. Attach in advance urethane foam to the front pillar as shown
in the figure as an alternative to the sound dampening foam material.
|
