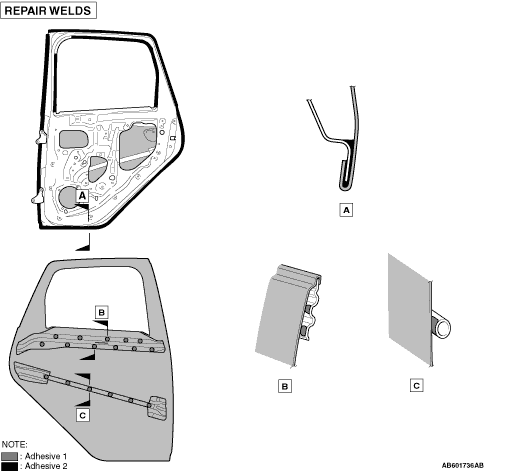

REAR DOOR OUTER
PANEL (ADHESION TYPE) <COLT>
- Adhesive 1: Urethane body sealer
Brand: 3M ATD Part No.08684, 08782 or equivalent
- Adhesive 2: Epoxyayresin adhesive
Brand: 3M ATD Part No.8115 or equivalent
NOTE ON REPAIR WORK
INSTALLATION
1.When installing the rear door outer panel, grind the bonding surface and remove the
paint to improve adhesion. Then, degrease the rear door outer panel.
2.Install the rear door outer panel and hem it. Then, wipe off the adhesive that squeezed
out.
)
)
