FRONT DOOR OUTER PANEL (WELDED TYPE) <COLT CZ3/CZT>
note

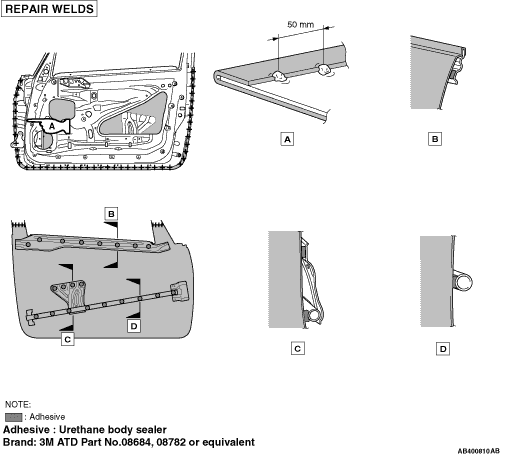

After hemming the front door outer panel, MIG spot weld the flange overlap section at a pitch of 50 mm.
NOTE ON REPAIR WORK
REMOVAL
Cut the door outer panel from the bottom of the window sash, and replace it.
)
)
