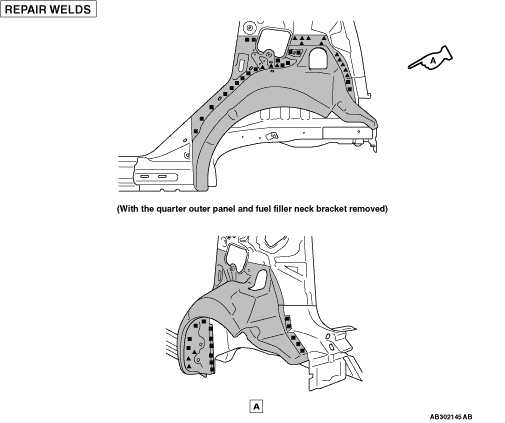

QUARTER INNER LOWER <COLT>







note
  • Refer to the Quarter Outer section on for the welding point with quarter outer panel and rear combination lamp housing panel.
  • Refer to the Quarter Inner section on for the welding point with fuel filler neck bracket.
