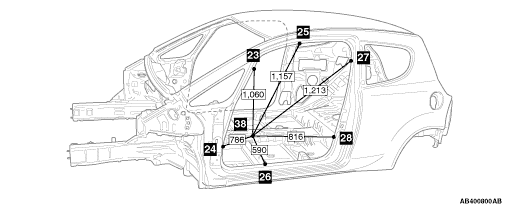

| No. |
Standard measurement point |
Hole shape |
Size mm |
| 23 |

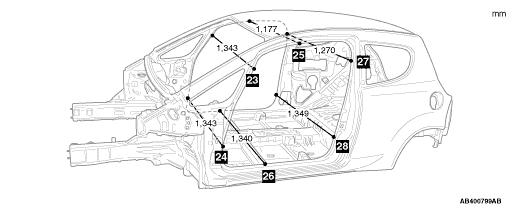

Front pillar positioning notch (upper) |
- |
- |

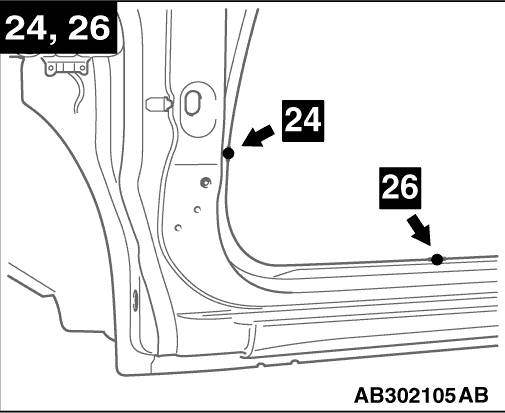

| 24 |
Front pillar positioning notch (lower) |
- |
- |
| 25 |
Roof side rail positioning notch |
- |
- |
| 26 |
Side sill positioning notch |
- |
- |

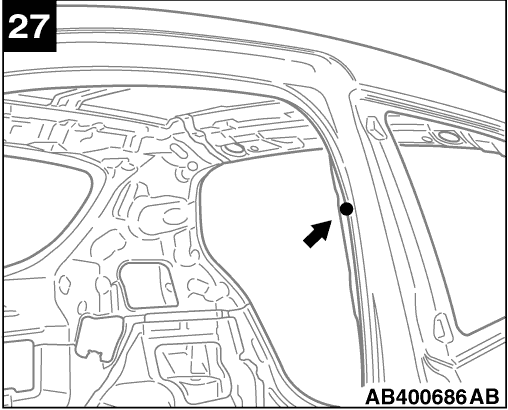

| 27 |
Quarter panel positioning notch (upper) |
- |
- |

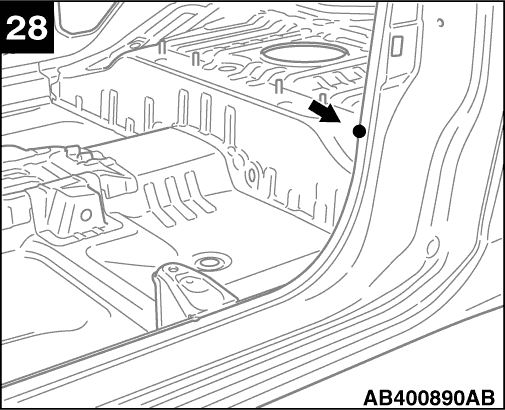

| 28 |
Quarter panel positioning notch (lower) |
- |
- |

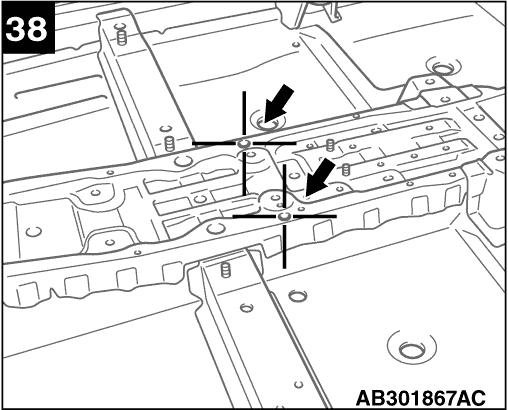

| 38 |
Centre of floor console bracket mounting hole |
Round |
8 |
)
)
)
)
)
)
)
| No. |
Standard measurement point |
Hole shape |
Size mm |

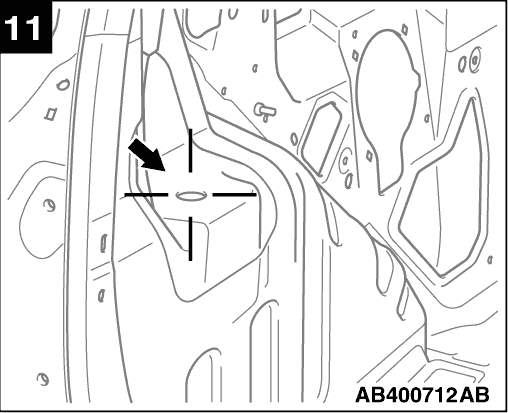

| 11 |

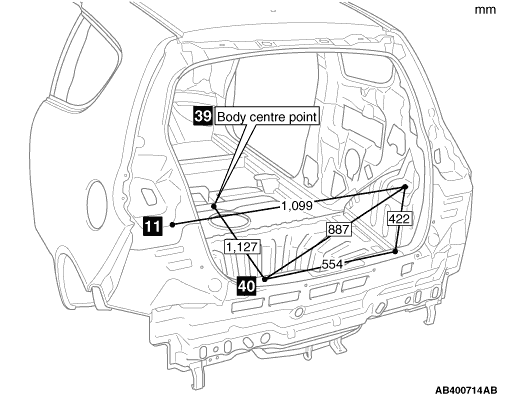

Centre of rear shock absorber mounting hole |
Round |
22 |

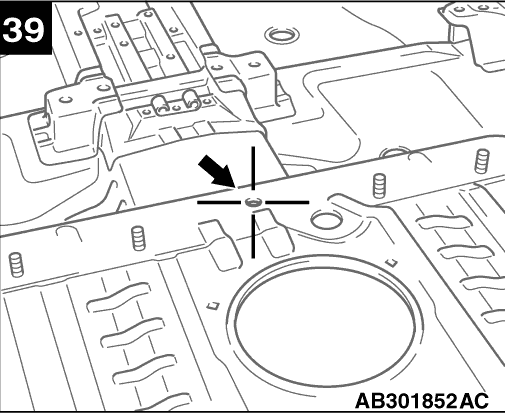

| 39 |
Body centre point of rear floor |
- |
- |
| 40 |

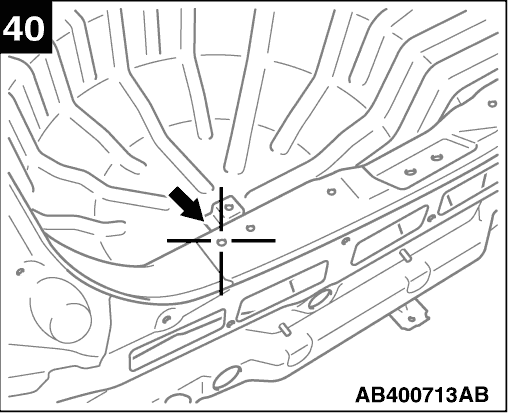

Centre of rear end trim mounting hole |
Round |
10 |

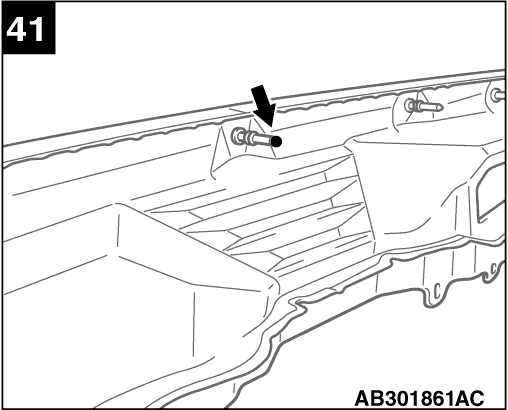

| 41 |

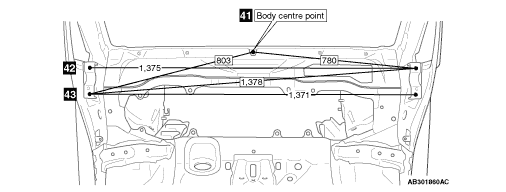

Tip of instrument panel bracket centre (Body centre point) |
- |
- |
| 42 |

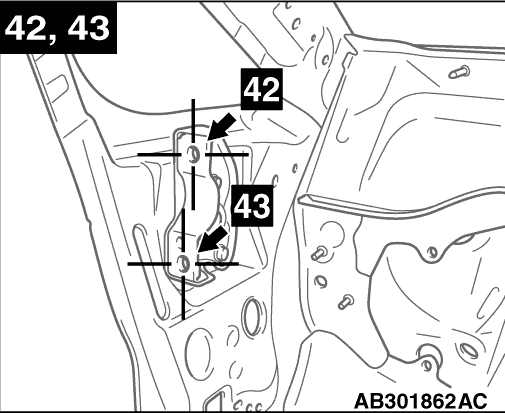

Centre of front deck crossmember mounting hole (upper) |
Round |
10.5 |
| 43 |
Centre of front deck crossmember mounting hole (lower) |
Round |
10.5 |
)
)
)
)
)
