| No. |
Standard measurement point |
Hole shape |
Size mm |

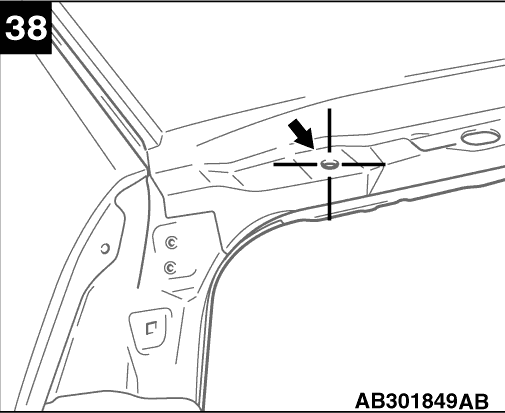

| 38 |
Centre of tailgate hinge mounting hole |
Round |
12 |

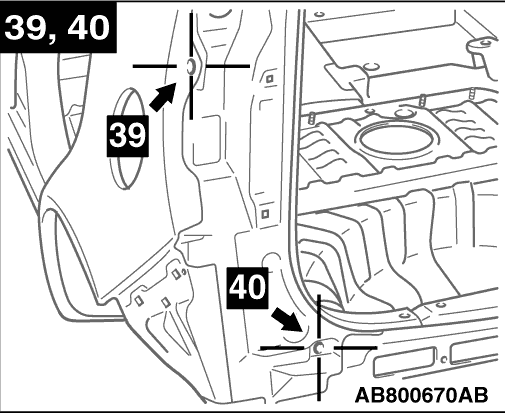

| 39 |
Centre of rear combination lamp mounting hole |
Round |
8 |
| 40 |
Centre of rear bumper side bracket mounting hole |
Round |
8 |

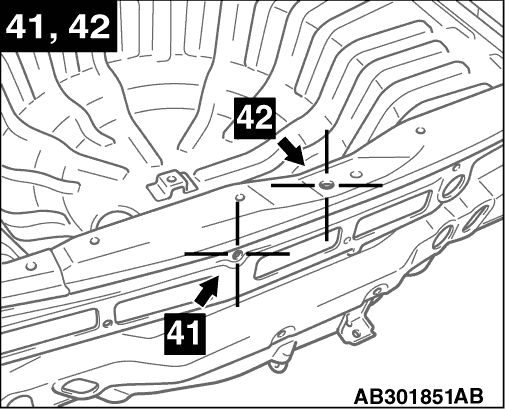

| 41 |
Centre of rear bumper mounting hole |
Round |
8 |
| 42 |
Centre of tailgate striker mounting hole |
Round |
13 |
)
)
)
