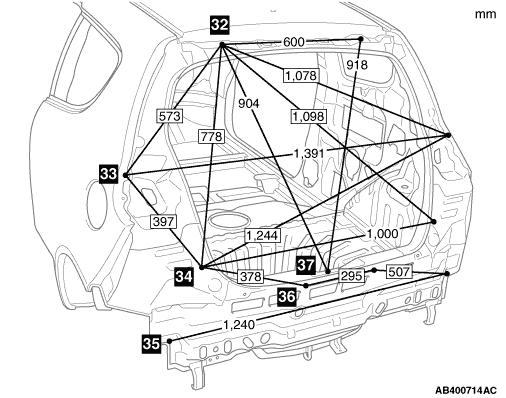

| No. |
Standard measurement point |
Hole shape |
Size mm |

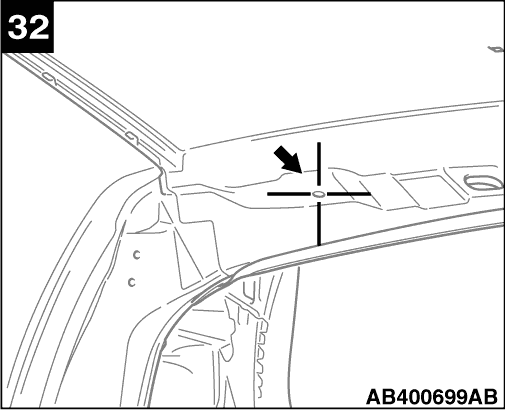

| 32 |
Centre of tailgate hinge mounting hole |
Round |
12 |

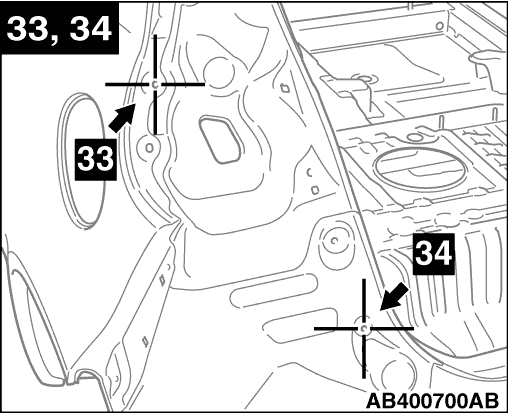

| 33 |
Centre of rear combination lamp mounting hole |
Round |
8 |
| 34 |
Centre of rear bumper mounting hole |
Round |
8 |

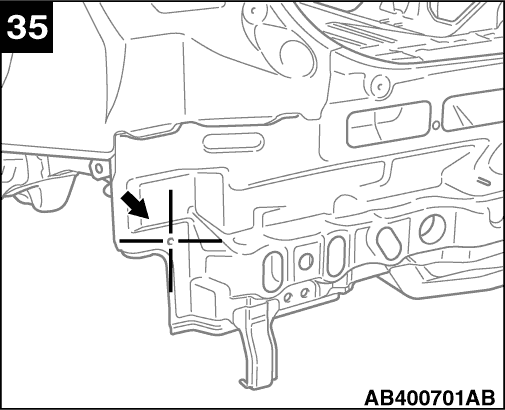

| 35 |
Centre of rear end outer panel positioning hole |
Round |
10 |
| 36 |
Centre of rear bumper mounting hole |
Round |
8 |
| 37 |
Centre of tailgate striker mounting hole |
Round |
13 |
)
)
)
)
