| No. |
Standard measurement point |
Hole shape |
Size mm |

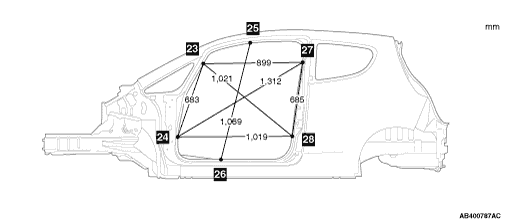

| 23 |
Front pillar positioning notch (upper) |
- |
- |

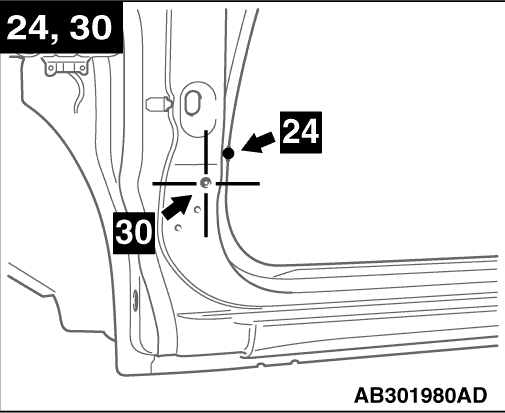

| 24 |
Front pillar positioning notch (lower) |
- |
- |
| 25 |
Roof side rail positioning notch |
- |
- |

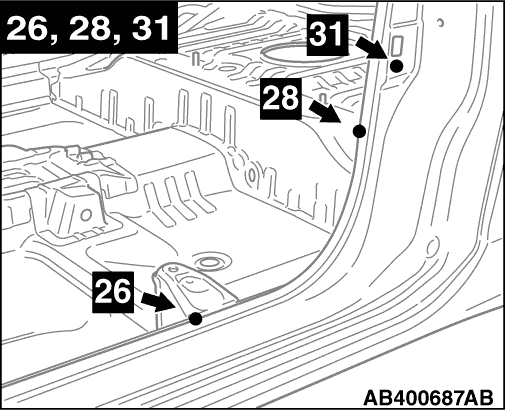

| 26 |
Side sill positioning notch |
- |
- |

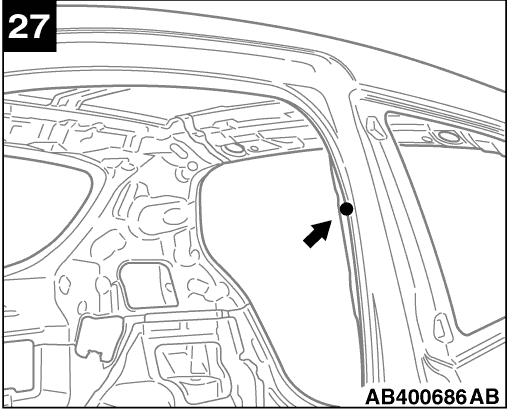

| 27 |
Quarter panel positioning notch (upper) |
- |
- |
| 28 |
Quarter panel positioning notch (lower) |
- |
- |

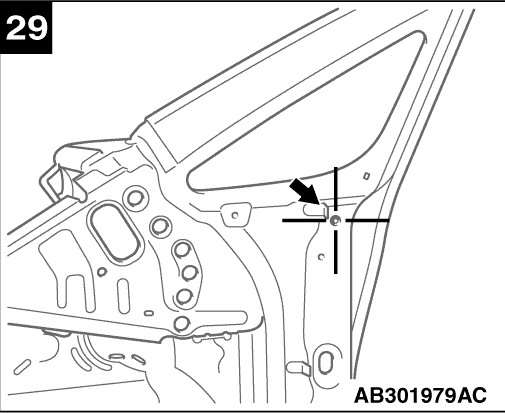

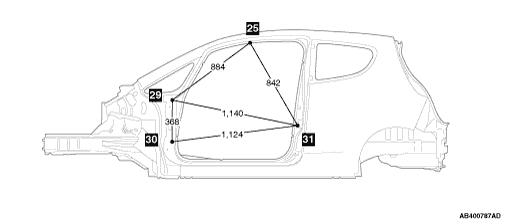

| 29 |
Centre of front door upper hinge mounting hole |
Round |
11.5 |
| 30 |
Centre of front door lower hinge mounting hole |
Round |
11.5 |
| 31 |
Centre of front door sensor mounting hole |
Round |
5 |
)
)
)
)
)
