No.
|
Standard measurement point
|
Hole shape
|
Size mm
|

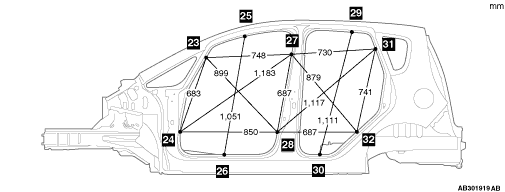

23
|
Front pillar positioning notch (upper)
|
-
|
-
|

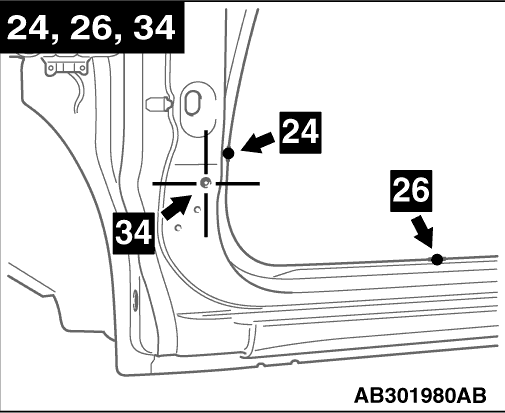

24
|
Front pillar positioning notch (lower)
|
-
|
-
|
25
|
Roof side rail positioning notch (front)
|
-
|
-
|
26
|
Side sill positioning notch (front)
|
-
|
-
|
27
|
Centre pillar positioning notch (upper)
|
-
|
-
|
28
|
Centre pillar positioning notch (lower)
|
-
|
-
|
29
|
Roof side rail positioning notch (rear)
|
-
|
-
|
30
|
Side sill positioning notch (rear)
|
-
|
-
|
31
|
Quarter panel positioning notch (upper)
|
-
|
-
|

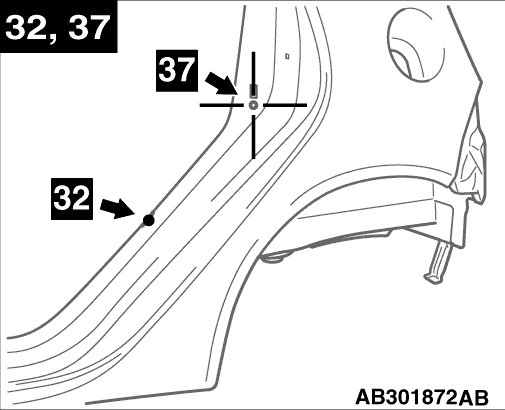

32
|
Quarter panel positioning notch (lower)
|
-
|
-
|

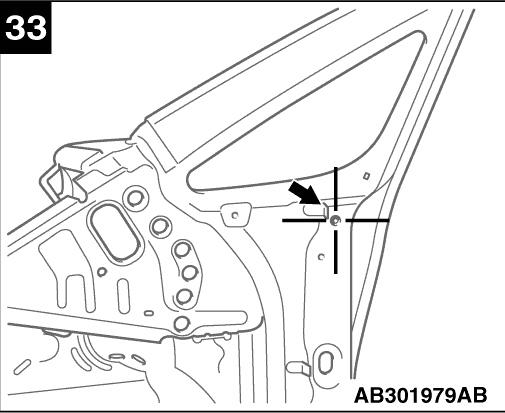

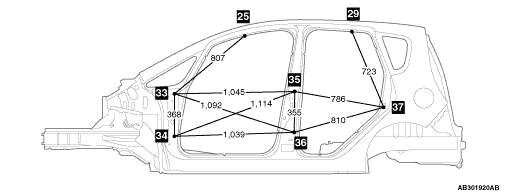

33
|
Centre of front door upper hinge mounting hole
|
Round
|
11.5
|
34
|
Centre of front door lower hinge mounting hole
|
Round
|
11.5
|

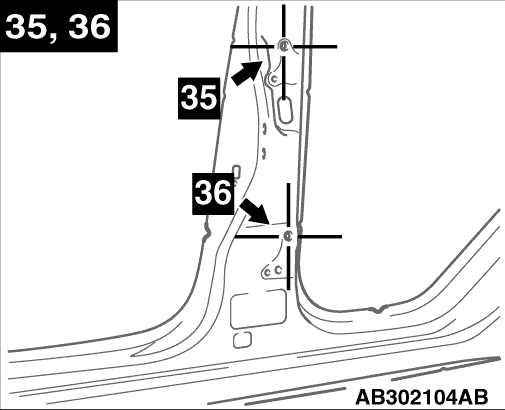

35
|
Centre of rear door upper hinge mounting hole
|
Round
|
11.5
|
36
|
Centre of rear door lower hinge mounting hole
|
Round
|
11.5
|
37
|
Centre of rear door switch mounting hole
|
Round
|
5
|
)
)
)
)
)
)
)
)
)
)
