No.
|
Standard measurement point
|
Hole shape
|
Size mm
|

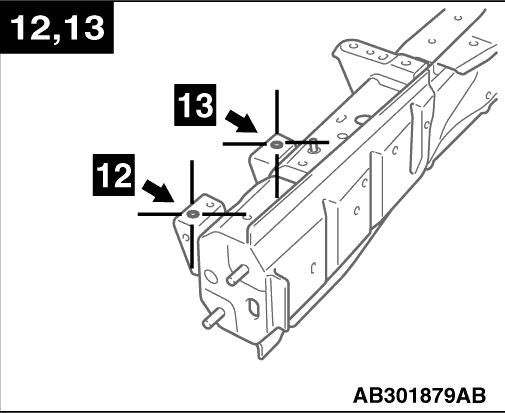

12
|
Centre of headlamp support centre mounting hole
|
Round
|
10.5
|
13
|
Centre of headlamp support centre mounting hole
|
Round
|
10.5
|

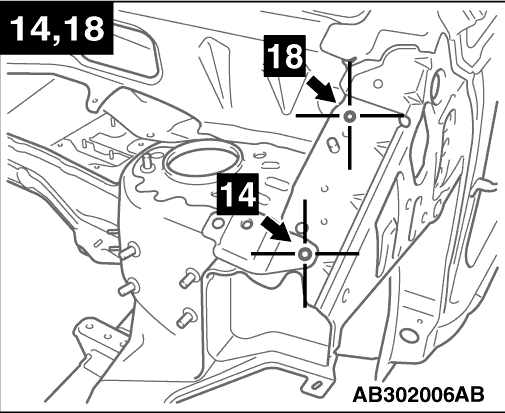

14
|
Centre of headlamp support side mounting hole
|
Oblong
|
13 × 15
|

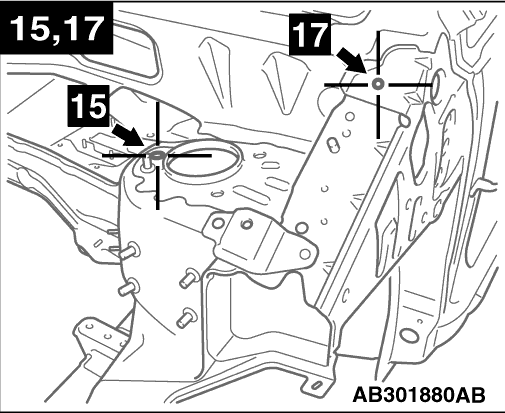

15
|
Centre of front strut mounting hole
|
Round
|
11.5
|

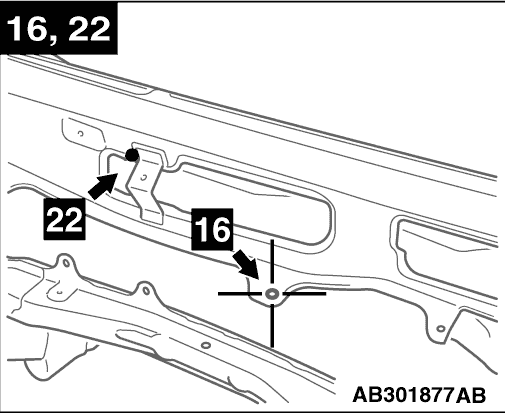

16
|
Centre of cowl top panel mounting hole
|
Oblong
|
9 × 11
|
17
|
Centre of front fender mounting hole
|
Oblong
|
10 × 14
|
18
|
Centre of hood hinge mounting hole
|
Round
|
11.5
|

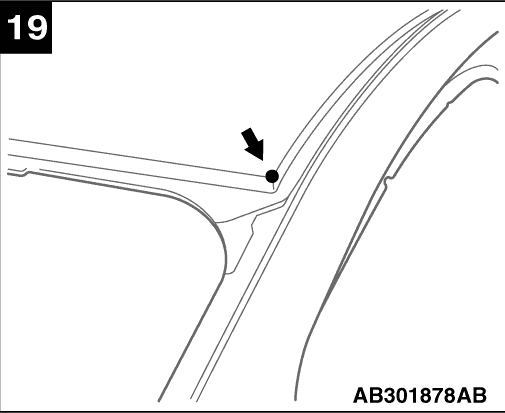

19
|
Corner of roof panel
|
-
|
-
|

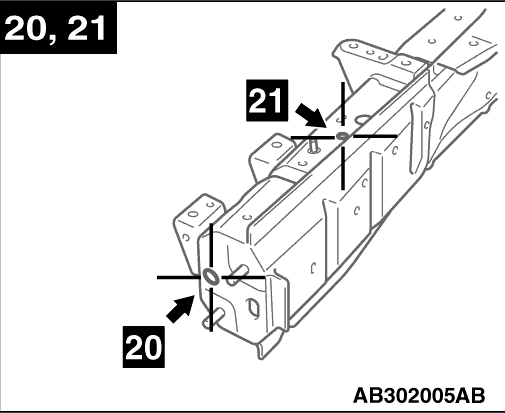

20
|
Centre of front sidemember bulkhead front positioning hole
|
Round
|
15
|
21
|
Centre of front sidemember inner positioning hole
|
Round
|
10
|
22
|
Notch on cowl top outer panel (Body centre point)
|
-
|
-
|
)
)
)
)
)
)
)
