No.
|

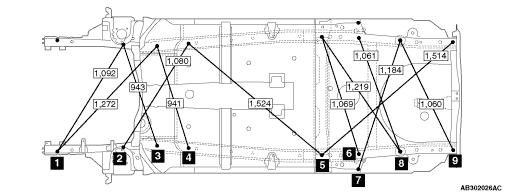

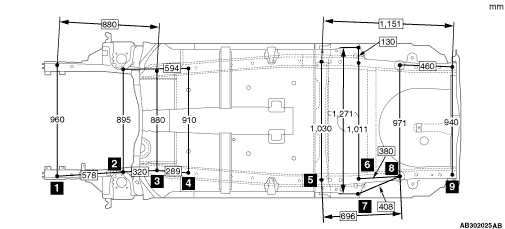

Standard measurement point
|
Hole shape
|
Size mm
|
1
|
Centre of front sidemember inner positioning hole
|
Round
|
25
|
2
|
Centre of crossmember mounting hole
|
Round
|
15
|
3
|
Centre of crossmember mounting hole
|
Round
|
16
|
4
|
Centre of front sidemember rear positioning hole
|
Round
|
25
|
5
|
Centre of rear floor sidemember water draining hole
|
Oblong
|
37.5 × 21.6
|
6
|
Centre of torsion axle arm mounting hole
|
Round
|
12.5
|
7
|
Centre of torsion axle arm mounting hole
|
Round
|
12.5
|
8
|
Centre of spring sheet positioning hole
|
Round
|
12
|
9
|
Centre of towing hook mounting hole
|
Round
|
13
|
)
)
)
)
)
)
)
