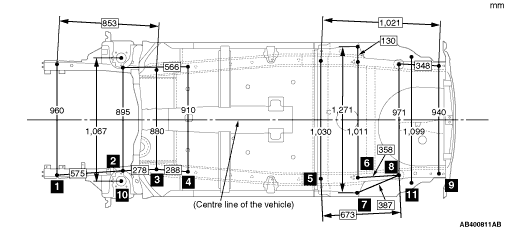

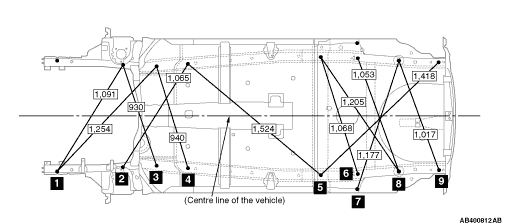

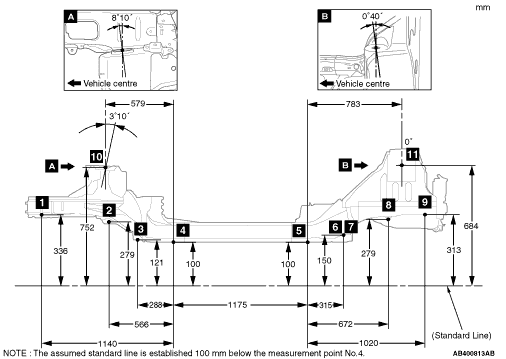

No.
|
Standard measurement point
|
Hole shape
|
Size mm
|
1*
|
Centre of front sidemember inner positioning hole
|
Round
|
25
|
2*
|
Centre of crossmember mounting hole
|
Round
|
15
|
3*
|
Centre of crossmember mounting hole
|
Round
|
16
|
4*
|
Centre of front sidemember rear positioning hole
|
Round
|
25
|
5*
|
Centre of rear floor sidemember water draining hole
|
Oblong
|
37.5 × 21.6
|
6*
|
Centre of torsion axle arm mounting hole
|
Round
|
12.5
|
7
|
Centre of torsion axle arm mounting hole
|
Round
|
12.5
|
8*
|
Centre of spring sheet positioning hole
|
Round
|
12
|
9*
|
Centre of rear floor sidemember extension positioning hole
|
Round
|
25
|
10
|

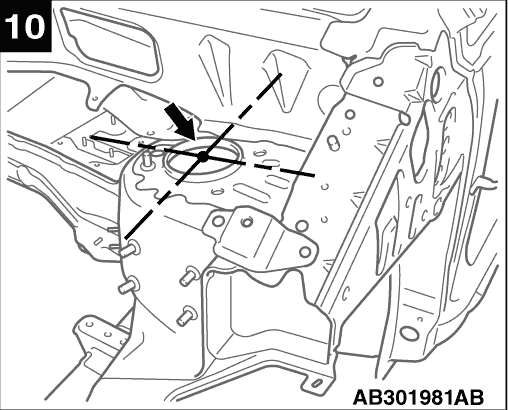

Centre of front strut mounting hole
|
Round
|
86.6
|
11
|

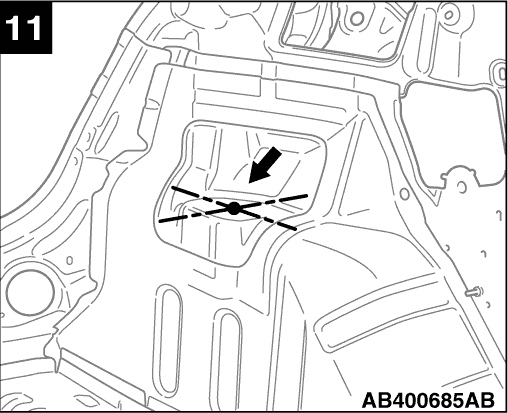

Centre of rear shock absorber mounting hole
|
Round
|
22
|
)
)
)
)
)
)
)
)
)
)
