DOOR <COLT CZ3/CZT>

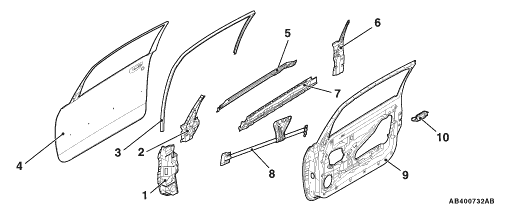

For better appearance and wind noise reduction, a one-piece top-bottom structure was employed for the front door outer panel and the front door inner panel.
1.
 Front door hinge reinforcement
2.
 Front door mirror reinforcement
3.
 Front door window sash
4.
 Front door panel outer
5.
 Front door belt line outer reinforcement
6.
 Front door latch reinforcement
7.
 Front door belt line inner reinforcement
8.
 Front door side door beam
9.
 Front door panel inner
10.
 Front door inside handle bracket
