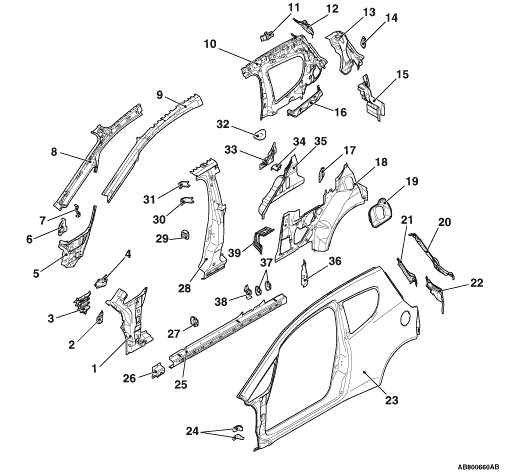

1.
|

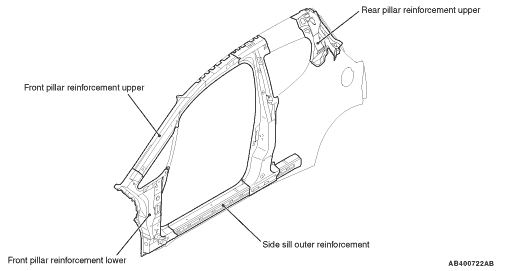

Front pillar reinforcement lower
|
2.
|
Door hinge reinforcement lower
|
3.
|
Front pillar lower bulkhead
|
4.
|
Door hinge reinforcement upper
|
5.
|
Front pillar inner lower
|
6.
|
Deck crossmember bracket front
|
7.
|
Deck crossmember bracket rear
|
8.
|
Front pillar inner upper
|
9.
|
Front pillar reinforcement upper
|
10.
|
Quarter panel inner
|
11.
|
Assist grip reinforcement
|
12.
|
Rear pillar reinforcement inner
|
13.
|
Rear pillar reinforcement upper
|
14.
|
Rear seat belt plate
|
15.
|
Quarter inner extension lower
|
16.
|
Stiffener upper
|
17.
|
Seat belt reinforcement lower
|
18.
|
Quarter panel lower inner
|
19.
|
Fuel filler neck bracket
|
20.
|
Rear lamp housing
|
21.
|
Rear pillar reinforcement rear
|
22.
|
Quarter outer extension lower
|
23.
|
Side outer panel
|
24.
|
Fender bracket
|
25.
|
Side sill outer reinforcement
|
26.
|
Side sill outer reinforcement front
|
27.
|
Side sill bulkhead
|
28.
|
Centre pillar reinforcement
|
29.
|
Striker reinforcement
|
30.
|
Centre pillar seat belt reinforcement lower
|
31.
|
Centre pillar seat belt reinforcement upper
|
32.
|
Absorber reinforcement upper <T/C>
|
33.
|
Absorber bracket
|
34.
|
Absorber reinforcement
|
35.
|
Wheel house panel inner
|
36.
|
Side sill end plate
|
37.
|
Side sill bulkhead A
|
38.
|
Centre pillar bracket
|
39.
|
Stiffener lower
|
)
)
