MAINTENANCE, SERVICEABILITY <COLT>

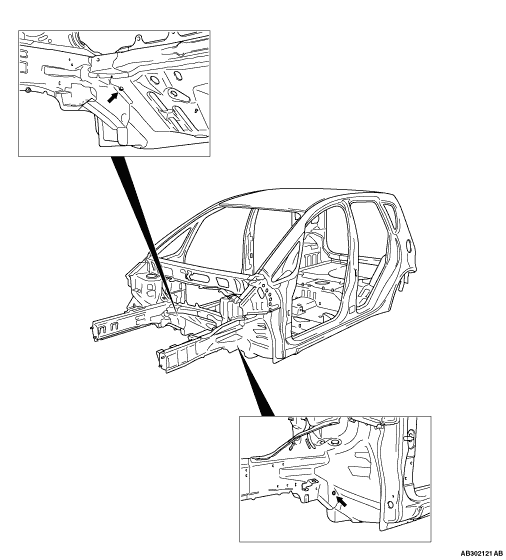

FENDER SHIELD
Positioning holes, marks, and notches have been provided at the following overlapped areas
to improve operation performance when replacing panels.

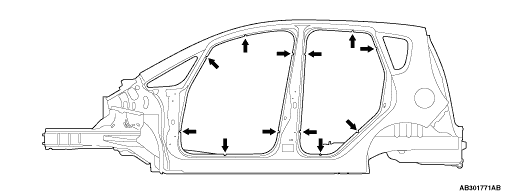

SIDE STRUCTURE

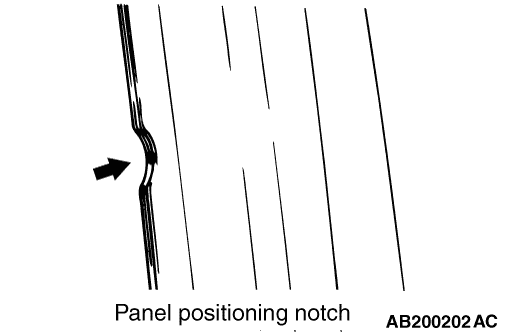

Panel positioning notches have been provided at the door opening section to improve operation performance
when replacing panels.

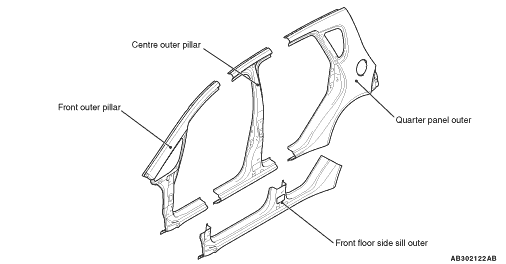

SIDE OUTER PANEL
The extra parts are supplied in 4 different cut forms as a result of employing the integrated
side-frame side outer panel.
)
)
)
)
