TRANSMISSION

The following two types of newly developed transmissions with light weight and small-size design have been adopted to realize good fuel efficiency.

F5MGA/F5MGB 5-speed manual transmission
F6SGA 6-speed automated manual transmission

MANUAL TRANSMISSION

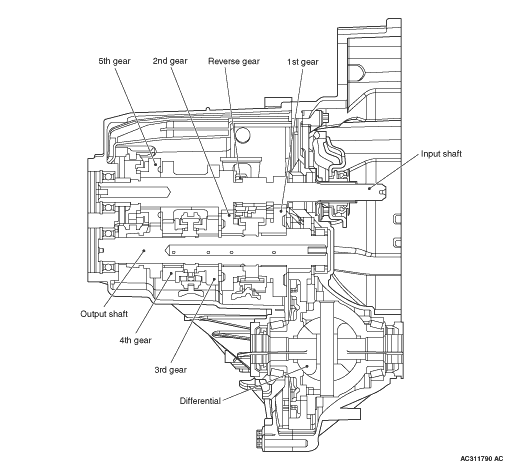

SECTIONAL VIEW

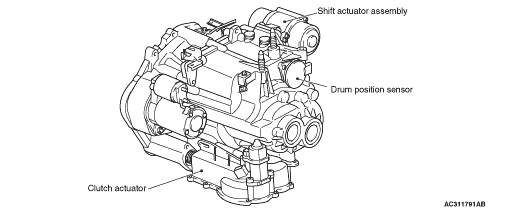

AUTOMATED MANUAL TRANSMISSION

OUTSIDE VIEW

As automated manual transmission is designed based on 6-speed manual gearbox and driven by electric actuators (motors) via sophisticated twin-drum shift mechanism, it gives our customers "easy to drive as A/T", "fun to drive and high fuel efficiency as M/T".

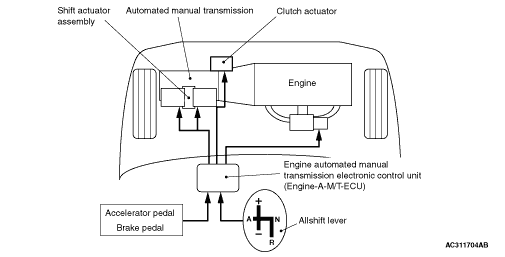

SCHEMATIC DIAGRAM

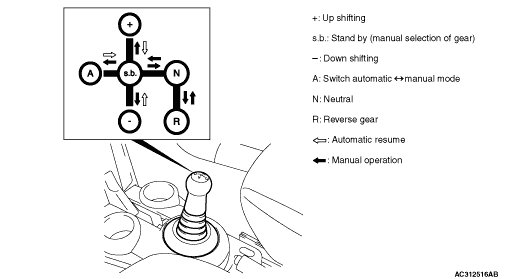

DRIVING MODE

Shifting the Allshift lever from the s.b. position to the "+" or "-" position enables a driver to upshift or downshift the gears voluntarily and quickly (manual mode). Shifting the Allshift lever from the s.b. position to "A" activates the auto mode which enables the driver to run as A/T (automatic shift control).

Position	Operation	Function	Further explanation
"N"	In "N"	Neutral	Engine start possible only at "N".
"R"	"N" → "R"	Reverse drive	Creeping.
s.b. (stand by)	"N" → s.b.	Forward drive	Creeping starts (with brake pedal depress).
		Auto mode or Manual mode	Starts from auto mode. <135950>
		Auto mode or Manual mode	Starts from manual mode. <135930>
"A"	s.b. → "A" (tip)	Mode change	Auto mode or Manual mode comes alternatively. (Auto mode → Manual mode → Auto mode → Manual mode)
"+", "-"	s.b. → "+" (tip) s.b. → "-" (tip)	+: Manual up shifting	Lower gear will be selected. 1, 2
		-: Manual down shifting	Higher gear will be selected. 1, 3
		1: After "+" or "-" tip action, mode becomes manual mode. 2: If vehicle speed is too low, some up shifts neglected. *3: If engine speed is too high, down shifting neglected.
