<COLT>




Item
 Z31A
 Z32A
XNLML6/XNLMR6
 XNLML6/XNLMR6

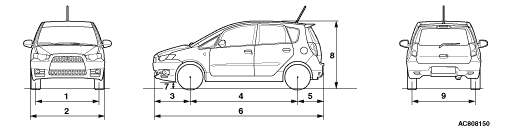

Vehicle dimension mm
 Front track
 1
 1,460
 1,460
Overall width
 2
 1,695
 1,695
Front overhang
 3
 845
 845
Wheel base
 4
 2,500
 2,500
Rear overhang
 5
 595
 595
Overall length
 6
 3,940
 3,940
Ground clearance (unladen)
 7
 154
 154
Overall height (unladen)
 8
 1,550
 1,550
Rear track
 9
 1,445
 1,445
Vehicle weight kg
 Kerb weight
 Without optional parts
 970
 965
With optional parts
 1,036
 1,033
Max. gross vehicle weight
 1,455
 1,450
Max. axle weight rating-front
 740
 735
Max. axle weight rating-rear
 745
 745
Towing capacity
 With brake
 750
 750
Without brake
 500
 500
Max. trailer-nose weight
 50
 50
Seating capacity
 5
 5
Engine
 Model code
 3A91
 3A91
Type
 DOHC with AS&G <Clear Tec>
 DOHC
Total displacement mL
 1,124
 1,124
Max. output kW/r/min
 55/6,000
 55/6,000
Max. torque N·m/r/min
 100/4,000
 100/4,000
Fuel system
 Fuel supply system
 MPI
 MPI
Transmission
 Model code
 F5MGA
 F5MGA
Type
 5-speed manual transmission
 5-speed manual transmission
Turning radius m
 Body
 5.4
 5.4
Wheel
 5.1
 5.1
Item
 Z32A
 Z33A
XNLML6Z
 XNLHL6/XNLHR6
Vehicle dimension mm
 Front track
 1
 1,460
 1,460
Overall width
 2
 1,695
 1,695
Front overhang
 3
 845
 845
Wheel base
 4
 2,500
 2,500
Rear overhang
 5
 595
 595
Overall length
 6
 3,940
 3,940
Ground clearance (unladen)
 7
 154
 154
Overall height (unladen)
 8
 1,550
 1,550
Rear track
 9
 1,445
 1,445
Vehicle weight kg
 Kerb weight
 Without optional parts
 965
 975
With optional parts
 1,033
 1,041
Max. gross vehicle weight
 1,450
 1,465
Max. axle weight rating-front
 735
 750
Max. axle weight rating-rear
 745
 745
Towing capacity
 With brake
 750
 1,000
Without brake
 500
 500
Max. trailer-nose weight
 50
 50
Seating capacity
 5
 5
Engine
 Model code
 134910 or 3A91
 4A90
Type
 DOHC
 DOHC with AS&G <Clear Tec>
Total displacement mL
 1,124
 1,332
Max. output kW/r/min
 55/6,000
 70/6,000
Max. torque N·m/r/min
 100/4,000
 125/4,000
Fuel system
 Fuel supply system
 MPI
 MPI
Transmission
 Model code
 F5MGA
 F5MGA
Type
 5-speed manual transmission
 5-speed manual transmission
Turning radius m
 Body
 5.4
 5.4
Wheel
 5.1
 5.1
Item
 Z34A
XNLHL6/XNLHR6
 XNLHL6Z
Vehicle dimension mm
 Front track
 1
 1,460
 1,460
Overall width
 2
 1,695
 1,695
Front overhang
 3
 845
 845
Wheel base
 4
 2,500
 2,500
Rear overhang
 5
 595
 595
Overall length
 6
 3,940
 3,940
Ground clearance (unladen)
 7
 154
 154
Overall height (unladen)
 8
 1,550
 1,550
Rear track
 9
 1,445
 1,445
Vehicle weight kg
 Kerb weight
 Without optional parts
 970
 970
With optional parts
 1,038
 1,038
Max. gross vehicle weight
 1,460
 1,460
Max. axle weight rating-front
 745
 745
Max. axle weight rating-rear
 745
 745
Towing capacity
 With brake
 1,000
 1,000
Without brake
 500
 500
Max. trailer-nose weight
 50
 50
Seating capacity
 5
 5
Engine
 Model code
 4A90
 135930 or 4A90
Type
 DOHC MIVEC
 DOHC MIVEC
Total displacement mL
 1,332
 1,332
Maximum output kW/rpm
 80/6,000
 80/6,000
Maximum torque N·m/rpm
 145/4,000
 145/4,000
Fuel system
 Fuel supply system
 MPI
 MPI
Transmission
 Model code
 F5MGA
 F5MGA
Type
 5-speed manual transmission
 5-speed manual transmission
Turning radius m
 Body
 5.4
 5.4
Wheel
 5.1
 5.1
Item
 Z34A
XJLHL6/XJLHR6
 XJLHL6Z
Vehicle dimension mm
 Front track
 1
 1,460
 1,460
Overall width
 2
 1,695
 1,695
Front overhang
 3
 845
 845
Wheel base
 4
 2,500
 2,500
Rear overhang
 5
 595
 595
Overall length
 6
 3,940
 3,940
Ground clearance (unladen)
 7
 154
 154
Overall height (unladen)
 8
 1,550
 1,550
Rear track
 9
 1,445
 1,445
Vehicle weight kg
 Kerb weight
 Without optional parts
 975
 975
With optional parts
 1,043
 1,043
Max. gross vehicle weight
 1,465
 1,465
Max. axle weight rating-front
 745
 745
Max. axle weight rating-rear
 745
 745
Towing capacity
 With brake
 1,000
 1,000
Without brake
 500
 500
Max. trailer-nose weight
 50
 50
Seating capacity
 5
 5
Engine
 Model code
 4A90
 135930 or 4A90
Type
 DOHC MIVEC
 DOHC MIVEC
Total displacement mL
 1,332
 1,332
Maximum output kW/rpm
 80/6,000
 80/6,000
Maximum torque N·m/rpm
 145/4,000
 145/4,000
Fuel system
 Fuel supply system
 MPI
 MPI
Transmission
 Model code
 F6SGA
 F6SGA
Type
 6-speed automated manual transmission
 6-speed automated manual transmission
Turning radius m
 Body
 5.4
 5.4
Wheel
 5.1
 5.1
Item
 Z37A
XNMFL6/XNMFR6
Vehicle dimension mm
 Front track
 1
 1,460
Overall width
 2
 1,695
Front overhang
 3
 845
Wheel base
 4
 2,500
Rear overhang
 5
 595
Overall length
 6
 3,940
Ground clearance (unladen)
 7
 154
Overall height (unladen)
 8
 1,550
Rear track
 9
 1,445
Vehicle weight kg
 Kerb weight
 Without optional parts
 1,090
With optional parts
 1,119
Max. gross vehicle weight
 1,550
Max. axle weight rating-front
 830
Max. axle weight rating-rear
 745
Towing capacity
 With brake
 1,000
Without brake
 500
Max. trailer-nose weight
 50
Seating capacity
 5
Engine
 Model code
 4G15
Type
 DOHC MIVEC with intercooled turbocharger
Total displacement mL
 1,468
Maximum output kW/rpm
 110/6,000
Maximum torque N·m/rpm
 210/3,500
Fuel system
 Fuel supply system
 MPI
Transmission
 Model code
 F5MGB
Type
 5-speed manual transmission
Turning radius m
 Body
 5.4
Wheel
 5.1
