SUPPORT POSITIONS FOR A GARAGE JACK,
AXLE STANDS, SINGLE-POST LIFT OR DOUBLE-POST LIFT AND PLATE TYPE LIFT
caution
Do not support the vehicles at locations other
than specified supporting points. Doing so will cause damage, etc.

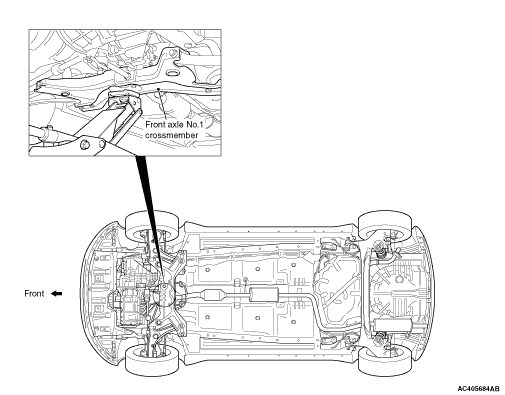

GARAGE JACK
caution
Use a low-profile type garage jack;
otherwise use of conventional garage jack may cause interference with bumper etc.
Never support any point other than the specified one, or that point will be deformed.
Use a lift when servicing at the rear side.

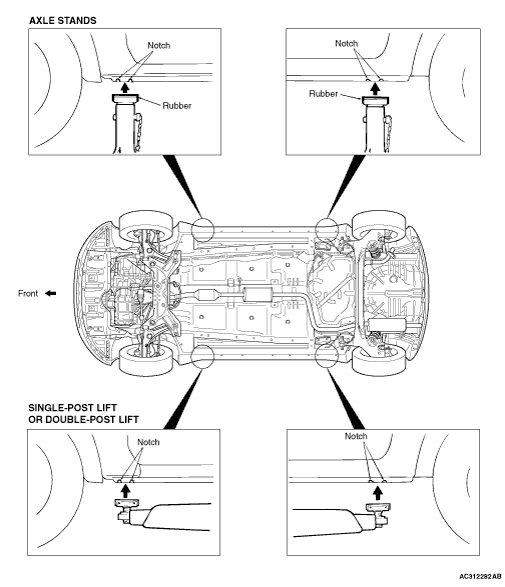

AXLE STANDS AND A SINGLE-POST LIFT OR DOUBLE-POST LIFT
caution
If rubber attachments with grooves
that are too thick are used at the front support positions, the front fender may become bent,
so be sure to use rubber attachments with groove thicknesses of 18 mm or less.
If attachments which are not high enough are used, they may damage areas such as
the side step. Be sure to use attachments which are high enough, or remove the side step if
not using attachments.
PLATE TYPE LIFT
caution
To avoid damaging the side sill garnish, put a
wooden block between the side sill and a lift.
)
)
