VEHICLE IDENTIFICATION

VEHICLE IDENTIFICATION CODE LABEL

<COLT CZ3>

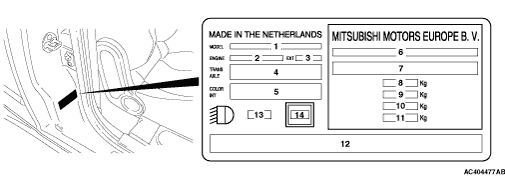

The vehicle identification code label is adhered on the bottom of the centre pillar. The label shows model code, engine model, transmission model, body colour code, chassis number and weight.
<COLT>

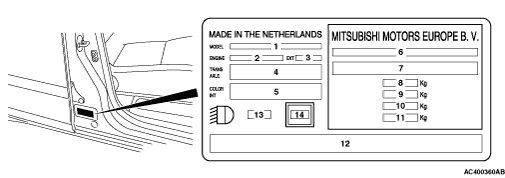

The vehicle identification code label is adhered on the bottom of the centre pillar. The label shows model code, engine model, transmission model, body colour code, chassis number and weight.

CODE CHART

No.	Item	Example	Content
1	MODEL	Z32AXNLML6	Z32A: Vehicle model XNLML6: Model series
2	ENGINE	134910	Engine model
3	EXT	W16	Body colour code
4	TRANS AXLE	F5MGA	Transmission model
5	COLOR INT	01H	Interior code
6	-	-	Type approval number
7		XMCXNZ32ABF000001	Chassis number
8		1450	Gross vehicle weight
9		2260	Gross combined weight
10		735	Gross axle weight front
11		745	Gross axle weight rear
12		-	Bar code of chassis number
13			Basic adjustment of headlamp aiming device
14			Diesel absorption coefficient

note

For monotone colour vehicles, the body colour code shall be indicated.

MODELS

<COLT CZ3>

Model code		Engine model	Transmission model	Fuel supply system
Z31A	MNLML6	3A91 (1,124 mL) DOHC with Auto Stop & Go (AS&G) <Clear Tec>	F5MGA (Front wheel drive 2WD, 5-speed manual transmission)	MPI
	MNLMR6
Z32A	MNLML6	3A91 (1,124 mL) DOHC MIVEC
	MNLMR6
	MNLML6Z	134910 (1,124 mL) DOHC MIVEC <Europe production> or 3A91 (1,124 mL) DOHC MIVEC <Japan production>
Z33A	MNLHL6	4A90 (1,332 mL) DOHC MIVEC with Auto Stop & Go (AS&G) <Clear Tec>
	MNLHR6
Z34A	MNLHL6	4A90 (1,332 mL) DOHC MIVEC
	MNLHR6
	MJLHL6		F6SGA (Front wheel drive 2WD, 6-speed automated manual transmission)
	MJLHR6
	MNLHL6Z	135930 (1,332 mL) DOHC MIVEC <Europe production> or 4A90 (1,332 mL) DOHC MIVEC <Japan production>	F5MGA (Front wheel drive 2WD, 5-speed manual transmission)
	MJLHL6Z		F6SGA (Front wheel drive 2WD, 6-speed automated manual transmission)
Z37A	MNMFL6	4G15 (1,468 mL) DOHC MIVEC with intercooled turbocharger	F5MGB (Front wheel drive 2WD, 5-speed manual transmission)
	MNMFR6

<COLT>

Model code		Engine model	Transmission model	Fuel supply system
Z31A	XNLML6	3A91 (1,124 mL) DOHC with Auto Stop & Go (AS&G) <Clear Tec>	F5MGA (Front wheel drive 2WD, 5-speed manual transmission)	MPI
	XNLMR6
Z32A	XNLML6	3A91 (1,124 mL) DOHC MIVEC
	XNLMR6
	XNLML6Z	134910 (1,124 mL) DOHC MIVEC <Europe production> or 3A91 (1,124 mL) DOHC MIVEC <Japan production>
Z33A	XNLHL6	4A90 (1,332 mL) DOHC MIVEC with Auto Stop & Go (AS&G) <Clear Tec>
	XNLHR6
Z34A	XNLHL6	4A90 (1,332 mL) DOHC MIVEC
	XNLHR6
	XJLHL6		F6SGA (Front wheel drive 2WD, 6-speed automated manual transmission)
	XJLHR6
	XNLHL6Z	135930 (1,332 mL) DOHC MIVEC <Europe production> or 4A90 (1,332 mL) DOHC MIVEC <Japan production>	F5MGA (Front wheel drive 2WD, 5-speed manual transmission)
	XJLHL6Z		F6SGA (Front wheel drive 2WD, 6-speed automated manual transmission)
Z37A	XNMFL6	4G15 (1,468 mL) DOHC MIVEC with intercooled turbocharger	F5MGB (Front wheel drive 2WD, 5-speed manual transmission)
	XNMFR6

MODEL CODE

No.	Item	Content
1	Development	Z3	MITSUBISHI COLT
2	Engine type	1	1.1L MPI (3A91) with AS&G <Clear Tec>
		2	1.1L MPI (134910 or 3A91)
		3	1.3L MPI (4A90) with AS&G <Clear Tec>
		4	1.3L MPI (135930 or 4A90)
		7	1.5L MPI (4G15)
3	Sort	A	Passenger car
4	Body style	M	2-door hatchback
4	Body style	X	4-door hatchback
5	Transmission type	N	5-speed manual transmission
5	Transmission type	J	6-speed automated manual transmission
6	Trim line	L	L-line
6	Trim line	M	M-line
7	Engine specification	M	DOHC MPI
		H	DOHC MIVEC
		F	Intercooled turbocharger
8	Steering wheel location	L	Left hand drive
8	Steering wheel location	R	Right hand drive
9	Destination	6	Vehicles for Europe
9	Destination	6Z	Vehicles for Russia (Eastern Europe countries)

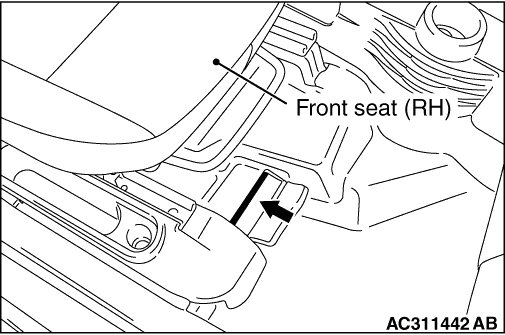

VEHICLE IDENTIFICATION NUMBER (CHASSIS NUMBER)

The chassis number is stamped on the front floor pan.

CODE CHART

No.	Item	Content
1	Fixed figure	X	Europe
2	Distribution channel	M	Netherlands channel
3	Steering wheel location	C	Left hand drive
3	Steering wheel location	D	Right hand drive
4	Body style	M	2-door hatchback
4	Body style	X	4-door hatchback
5	Transmission type	N	5-speed manual transmission
5	Transmission type	J	6-speed automated manual transmission
6	Vehicle model	Z31A	1.1L MPI (3A91) with AS&G <Clear Tec>
		Z32A	1.1L MPI (134910 or 3A91)
		Z33A	1.3L MPI (4A90) with AS&G <Clear Tec>
		Z34A	1.3L MPI (135930 or 4A90)
		Z37A	1.5L MPI (4G15)
7	Model year	B	2011 year
8	Plant	F	Netherlands Car B.V.
9	Serial number	000001 to 999999

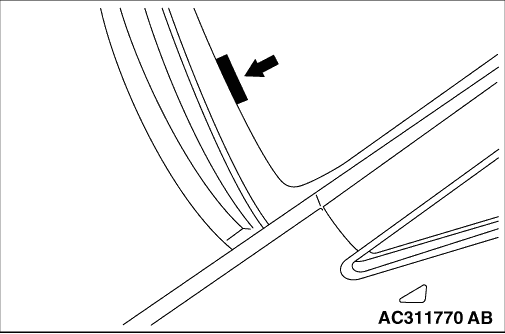

VEHICLE IDENTIFICATION NUMBER <VEHICLES FOR RIGHT HAND DRIVE>

The vehicle identification number (chassis number) is located on a plate attached to the left top side of the instrument panel.

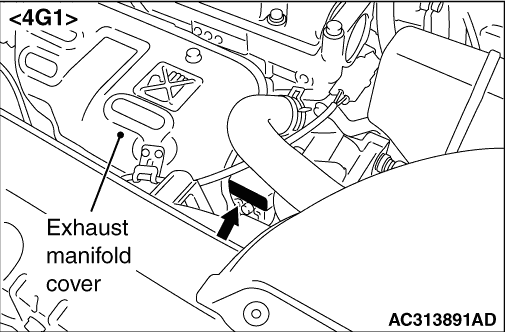

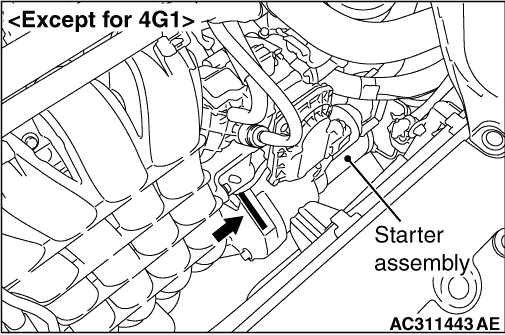

ENGINE MODEL STAMPING

The engine model is stamped on the cylinder block.
This engine model numbers are shown as follows.

Engine model	Engine displacement
134910 or 3A91	1,124 mL
135930 or 4A90	1,332 mL
4G15	1,468 mL

The engine serial number is stamped near the engine model number.

Engine serial number

AA0201 to YY9999
