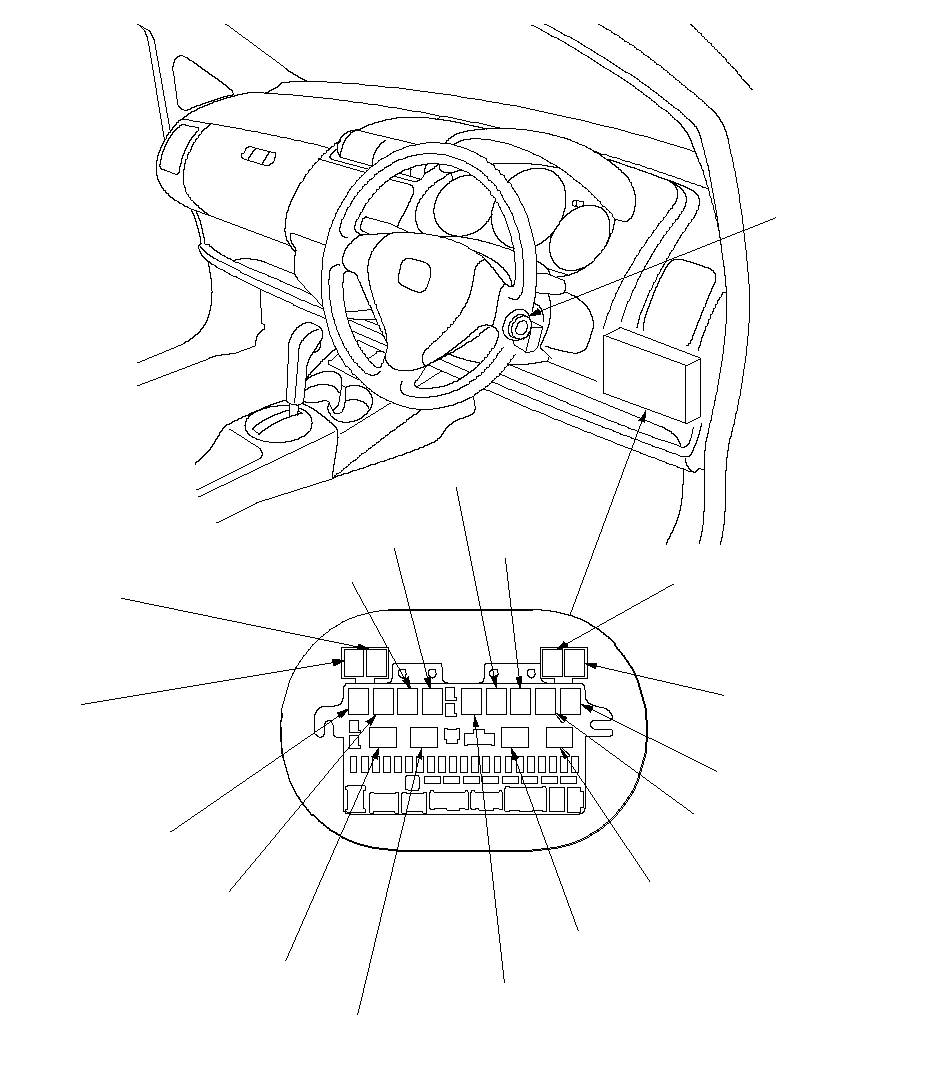

Relay and Control Unit Locations - Dashboard #1 (RHD)
Relay and Control Unit Locations - Dashboard #1
RHD type:
REAR WINDOWDEFOGGER RELAYRIGHT
ACTIVATION
INDICATOR
RELAYPGM-FI MAIN
RELAY1PGM-FI MAIN
RELAY2TAILLIGHT RELAYREAR FOG LIGHT RELAY
(With front fog lights)POWER DOOR LOCK/
FUEL FILL DOOR
LOCK RELAYA/T REVERSE RELAYLEFT ACTIVATION
INDICATOR RELAYLEFT HID
HEADLIGHT RELAY
(KU model with
HID headlight)
LEFT SUPER
LOCKING RELAY
(KE model)·RIGHT HID
HEADLIGHT RELAY
(KU model with
HID headlight)
RIGHT SUPER
LOCKING RELAY
(KE model)POWER DOOR UNLOCK/
FUEL FILL DOOR
LOCK RELAYSTARTER CUT
RELAY (CVT)POWER WINDOW
RELAYPOWER MIRROR DEFOGGER
RELAY or
FRONT FOG LIGHT RELAY
(Without rear fog light)BLOWER MOTOR
RELAYFRONT FOG LIGHT RELAY
(With rear fog light)IMMOBILIZER CONTROL
UNIT-RECEIVER···
