A/C Refrigerant Oil Replacement
A/C Refrigerant Oil Replacement
Recommended PAG oil: KEIHIN SP-10:
- P/N 38897-P13-003: 120 mL (4 fl·oz, 4.2 Imp·oz)
- P/N 38898-P13-003: 250 mL (8 1/3 fl·oz, 8.8 Imp·oz)
- P/N 38899-P13-A01: 40 mL (1 1/3 fl·oz, 1.4 Imp·oz)
Add the recommended refrigerant oil in the amount listed if you replace any of the following parts.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if it gets on the paint, wash it off immediately.
| A/C Condenser . | 25 mL (5/6 fl·oz, 0.9 lmp·oz) |
| Evaporator . | 35 mL (1 1/6 fl·oz, 1.2 lmp·oz) |
| Line or hose . | 10 mL (1/3 fl·oz, 0.4 lmp·oz) |
| Leakage repair . | 25 mL (5/6 fl·oz, 0.9 lmp·oz) |
| A/C Compressor . | For A/C compressor replacement, subtract the volume of oil drained from the removed A/C compressor from 100 mL (3 1/3 fl·oz, 3.5 lmp·oz), and drain the calculated volume of oil from the new A/C compressor: 100 mL ( 3 1/3 fl·oz, 3.5 lmp·oz) - Volume of removed A/C compressor = Volume to drain from new A/C compressor. NOTE: Even if no oil is drained from the removed A/C compressor, don't drain more than 50 mL (1 2/3 fl·oz, 1.8 lmp·oz) from the new A/C compressor. |
REMOVEDA/C COMPRESSORNEW
A/C COMPRESSORSAME LEVEL: ADRAINING
VOLUMEA: 100 mL (3 1/3 fl·oz, 3.5 lmp·oz)

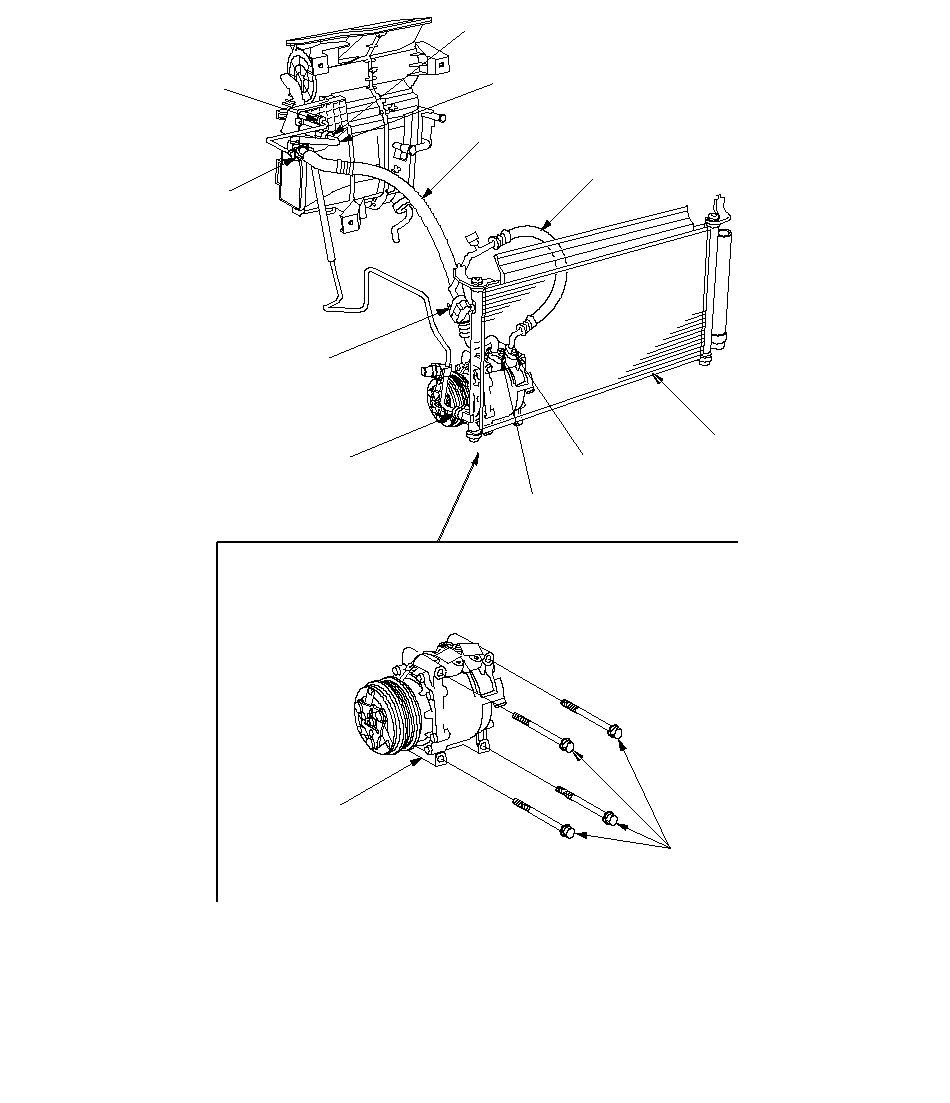

LHD type
Discharge hose to the A/C compressor (6 x 1.0 mm): 9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)Discharge hose to the A/C condenser (6 x 1.0 mm): 9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)Receiver line to the A/C condenser (6 x 1.0 mm): 9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)Suction hose to the A/C compressor (6 x 1.0 mm): 9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)Receiver line to the evaporator: 13.3 N·m (1.4 kgf·m, 9.8 lbf·ft)(1)(2)(3)(4)(5)(6)(7)(8)A/C COMPRESSORDISCHARGE HOSE(3)(1)(2)(7)(8)(5)(4)A/C CONDENSER(6)SUCTION HOSEA/C compressor to the A/C compressor bracket (8 x 1.25 mm): 22 N·m (2.2 kgf·m, 16 lbf·ft)Suction line to the suction hose: 31.9 N·m (3.2 kgf·m, 23.5 lbf·ft)Suction line to the evaporator: 31.9 N·m (3.2 kgf·m, 23.5 lbf·ft)SUCTION LINE
