Keyless/Power Door Lock System Component Location Index (LHD)
Keyless/Power Door Lock System Component Location Index

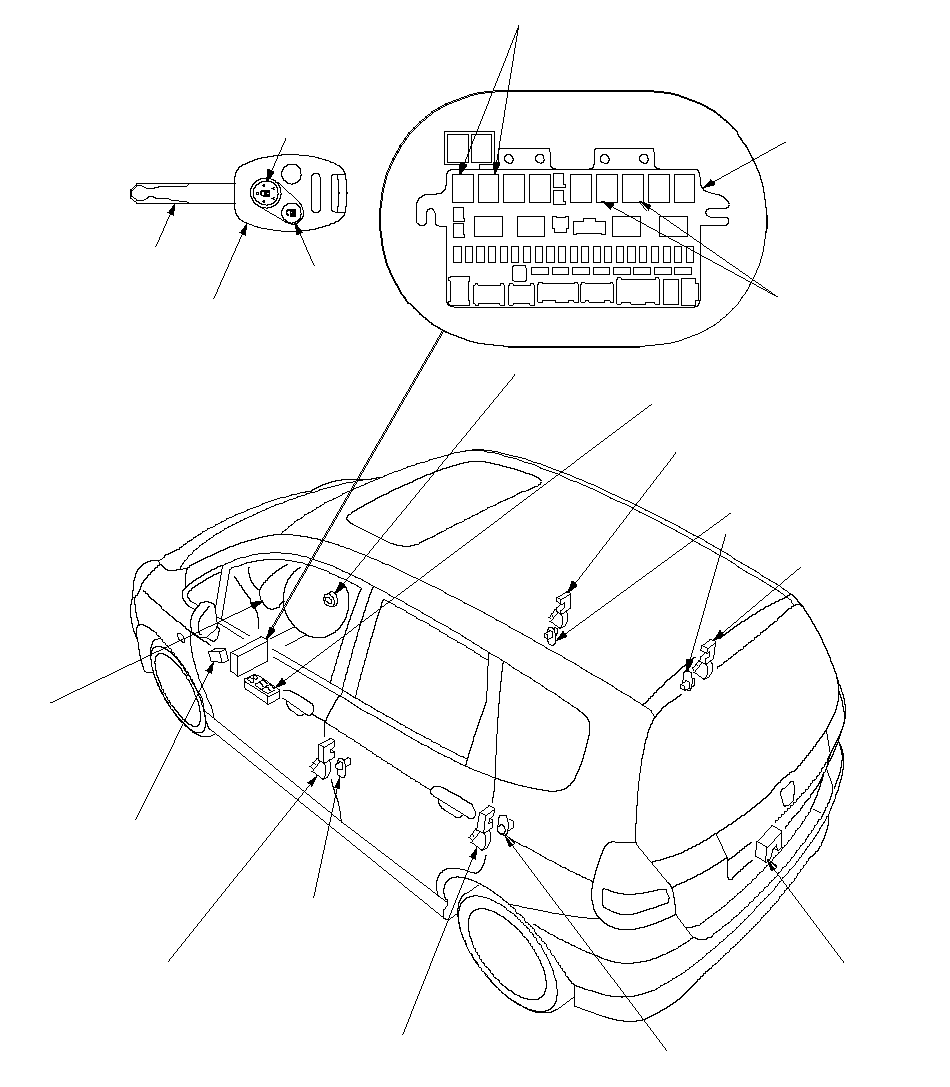

LHD type:
TRANSMITTERTest,
Programming, LOCK BUTTONIGNITION KEYUNLOCK BUTTONGAUGE ASSEMBLY
(Has built in the power
door lock circuit)
Input Test,
POWER DOOR UNLOCK RELAY
Test, POWER DOOR LOCK RELAY
Test, UNDER-DASH
FUSE/RELAY
BOXLEFT ACTIVATION
INDICATOR RELAY
Test, RIGHT ACTIVATION
INDICATOR RELAY
Test, RIGHT REAR DOOR
LOCK ACTUATORRIGHT REAR DOOR WITCHFRONT PASSENGER'S DOOR
LOCK ACTUATORPOWER WINDOW MASTER SWITCH
(Has built-in driver's door lock switch)FRONT PASSENGER'S DOOR SWITCHTAILGATE LATCH SWITCH
TAILGATE LOCK ACTUATORLEFT REAR DOOR SWITCHLEFT REAR DOOR LOCK ACTUATORDRIVER'S DOOR
SWITCHKEYLESS RECEIVER UNIT
Test, DRIVER'S DOOR LOCK
ACTUATOR/KNOB SWITCHIGNITION KEY SWITCH
