Fuel Line Inspection (Without ETCS)

Fuel Line Inspection

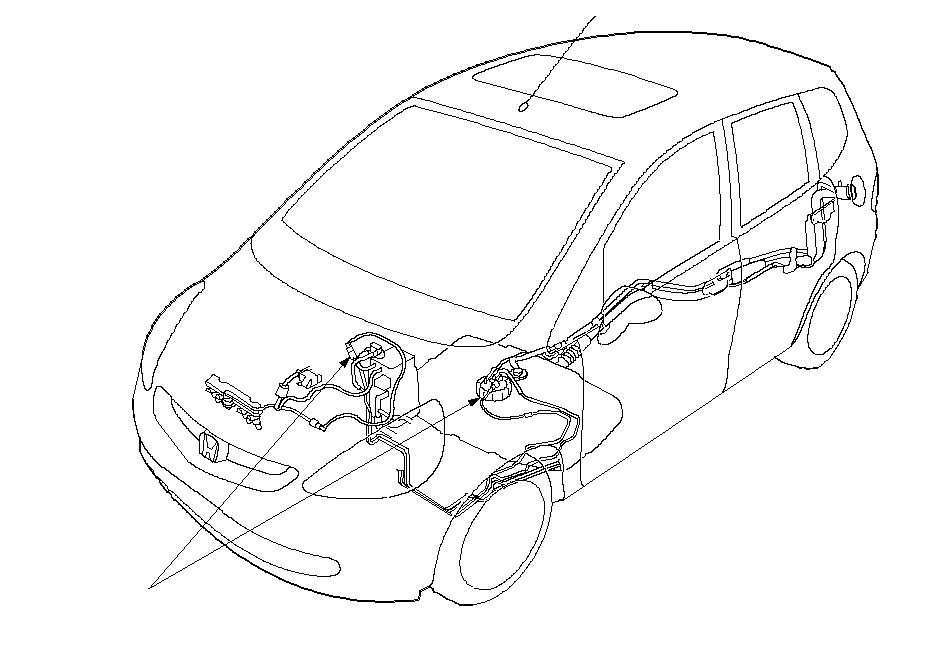

Check the fuel system lines, hoses, and fuel filter for damage, leaks, and deterioration. Replace any damaged parts.

Make sure the connection is
secure and the quick-connect
fitting cover is firmly locked into place.

Check all clamps and retighten if necessary.

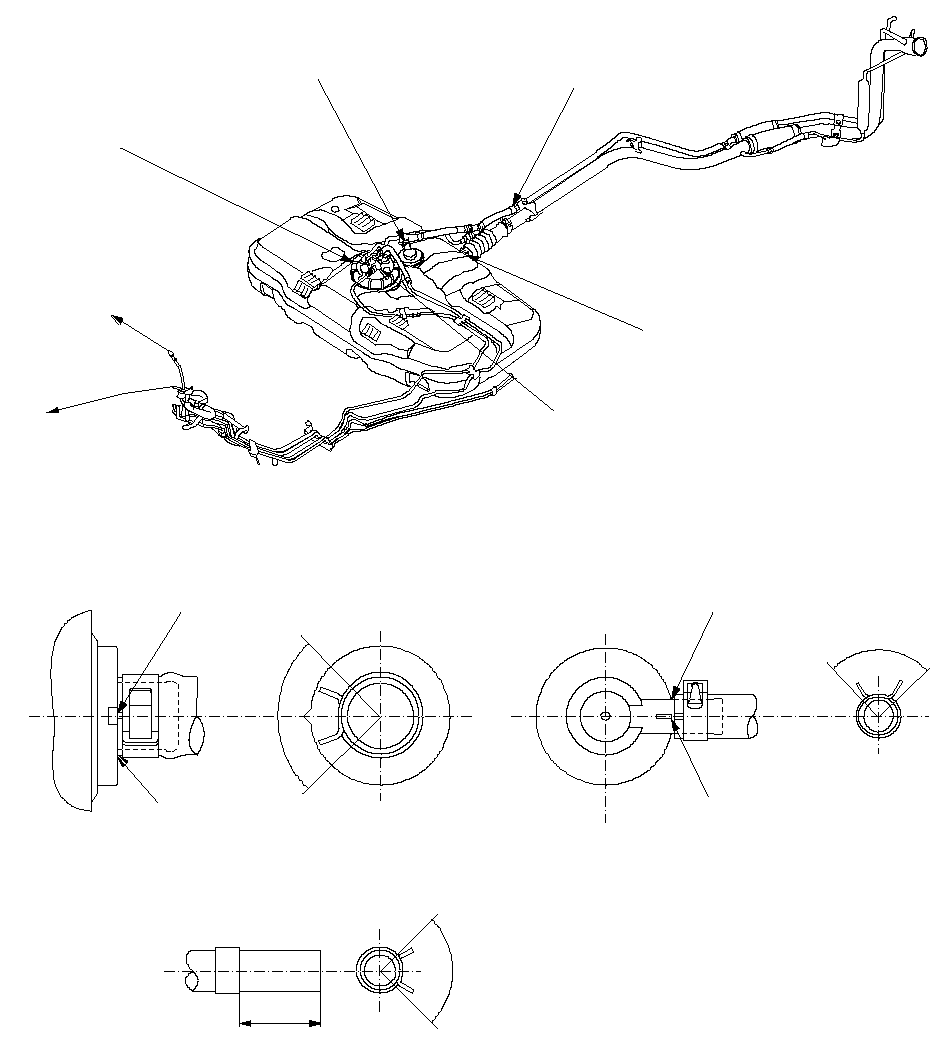

CBABASE
GASKET
Replace.FUEL
PUMPTo FUEL
RAILTo EVAPORATIVE
EMISSION (EVAP)
CANISTER PURGE VALVEmarkThere should be
no clearance.C:A:B:There should be no
clearance.90°40mm
(1.57 in.)90°90°When instelling the
fuel fill tube,
align the marks on the
tube and the pipe.
