M/T Gearshift Mechanism Replacement (5MT)

M/T Gearshift Mechanism Replacement



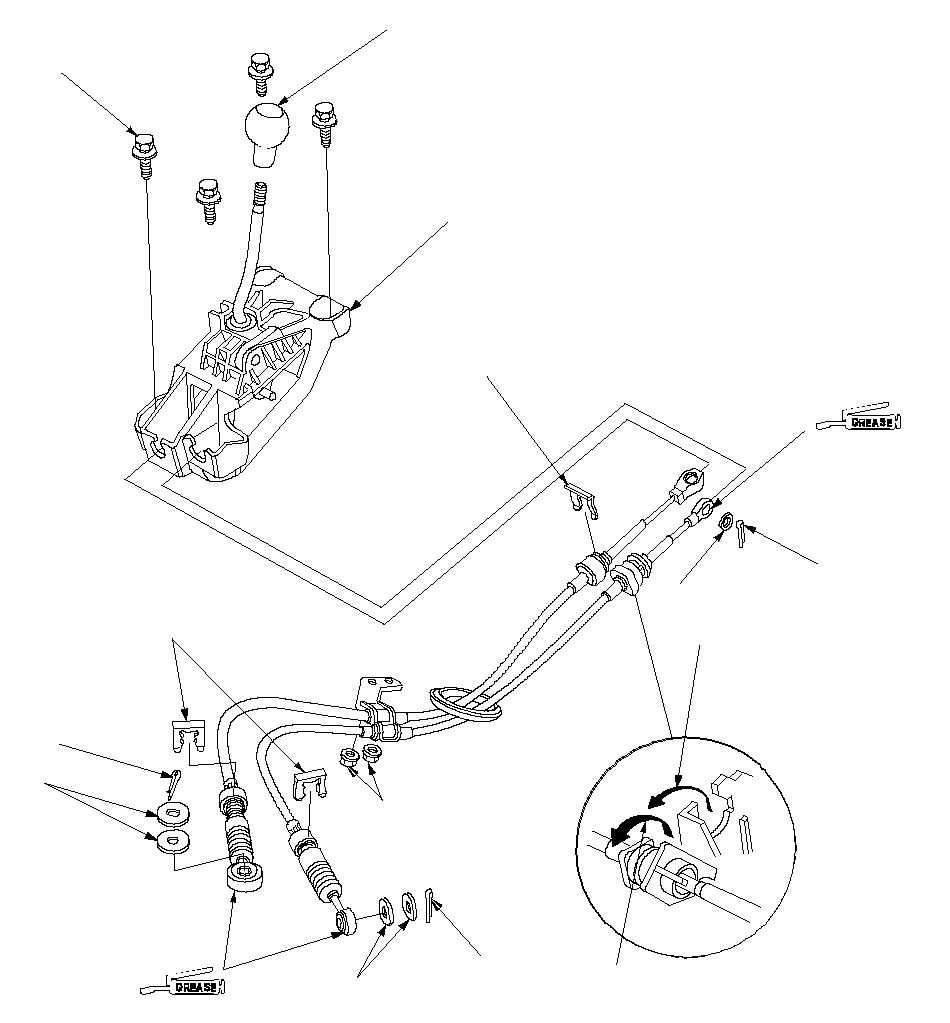

SHIFT LEVER KNOB
8 N·m (0.8 kgf·m, 5.8 lbf·ft)8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)WASHERS6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)COTTER PIN
Replace.SHIFT LEVER HOUSING(1)Remove the shift cable from
the shift lever bracket.Rotate the shift cable
toward the opening.COTTER PINS
Replace.SHIFT CABLE CLIP
Replace.WASHERS(2)COTTER PINS
Replace.WASHERSHIFT CABLE CLIP
Replace.
