PGM-FI System Component Location Index (5MT-KG/KE/KR)

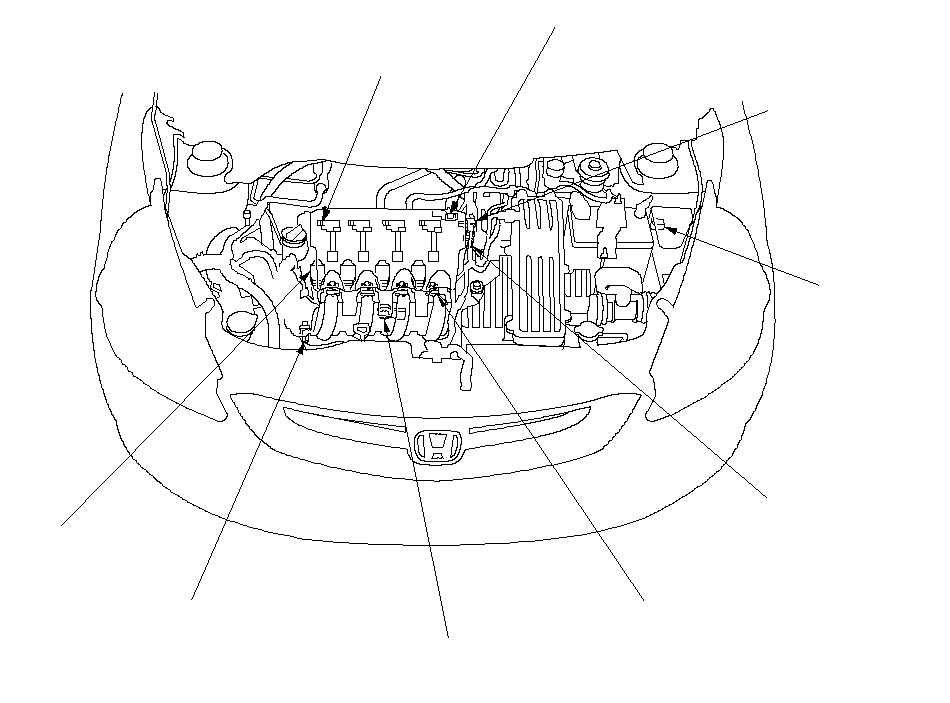

PGM-FI System Component Location Index

INTAKE AIR TEMPERATURE/
MANIFOLD ABSOLUTE PRESSURE (IAT/MAP)
SENSOR
Replacement,
ENGINE COOLANT
TEMPERATURE
(ECT) SENSOR
Replacement, KNOCK SENSOR
Replacement, CRANKSHAFT POSITION (CKP)
SENSOR
Replacement, REAR IGNITION
COILFRONT
IGNITION
COILELECTRICAL
LOAD DETECTOR
(ELD)CAMSHAFT
POSITION (CMP)
SENSOR
Replacement,
INJECTORS
Replacement, *: The illustration shows LHD model.

SECONDARY HEATED OXYGEN
SENSOR (SECONDARY HO2S)
(SENSOR 2)
Replacement, PRIMARY HEATED OXYGEN
SENSOR (PRIMARY HO2S)
(SENSOR 1)
Replacement,

LHD model:

ENGINE CONTROL MODULE (ECM)
General Troubleshooting Information,

Troubleshooting, DATA LINK CONNECTOR (DLC)
General Troubleshooting Information,

Troubleshooting, INERTIA SWITCH
Troubleshooting, PGM-FI
MAIN RELAY2PGM-FI
MAIN RELAY1

RHD model:
