Manual Transmission Disassembly (5MT)

Manual Transmission Disassembly

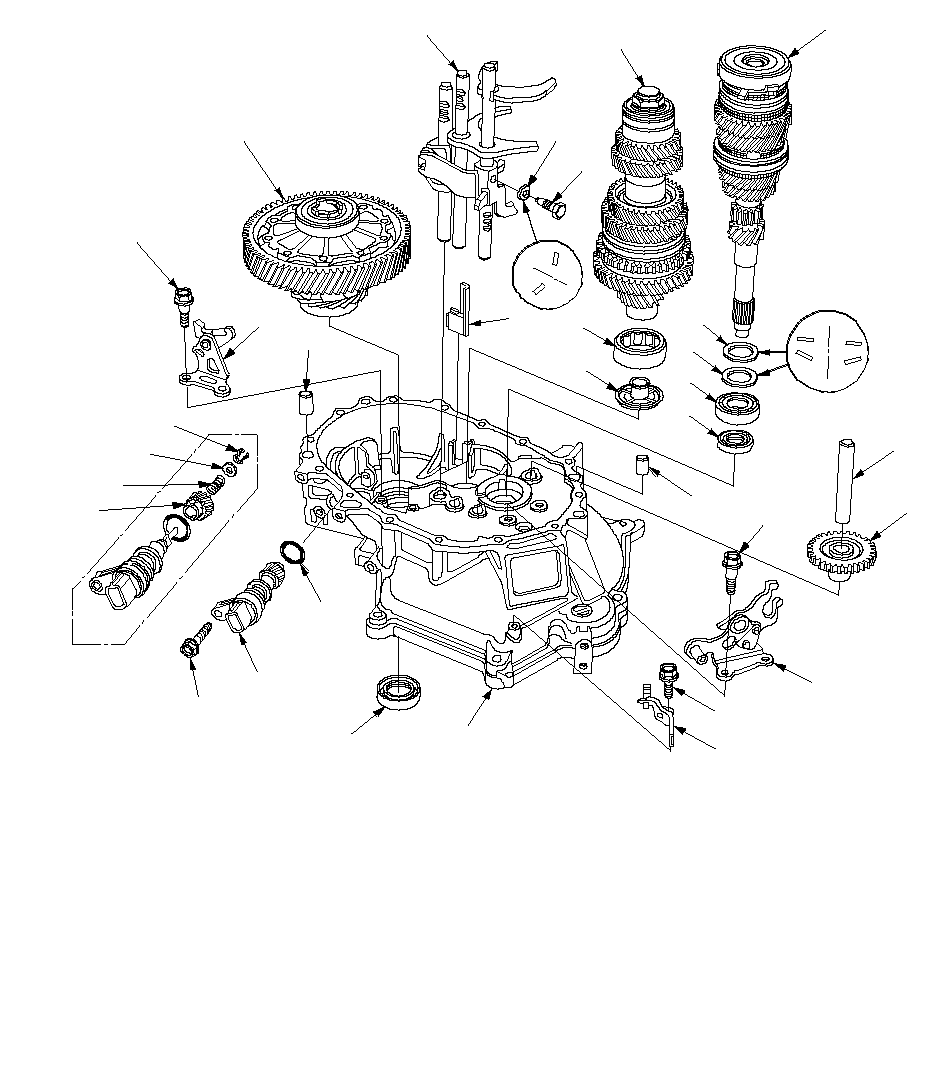

Exploded View-Clutch Housing

(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)(11)(12)(13)(14)(15)(16)(17)(18)(19)(20)(21)(22)(23)(24)(25)(26)(27)(28)(29)(30)(31)DIFFERENTIAL ASSEMBLYSHIFT FORK ASSEMBLYCOUNTERSHAFT ASSEMBLYMAINSHAFT ASSEMBLYNEEDLE BEARINGOIL GUIDE PLATE CMAGNET26 mm WASHER36 mm SPRING WASHERBALL BEARING26 x 40 x 7 mm OIL SEAL
Replace.14 x 20 mm DOWEL PINREVERSE GEAR SHAFTREVERSE IDLER GEAR6 mm SPECIAL BOLT
15 N·m (1.5 kgf·m, 11 lbf·ft)REVERSE SHIFT FORK35 x 58 x 8 mm OIL SEAL
Replace.CLUTCH HOUSING6 mm FLANGE BOLT
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)VEHICLE SPEED SENSOR (VSS)O-RING
Replace.REVERSE LOCK CAM6 mm SPECIAL BOLT
15 N·m (1.5 kgf·m, 11 lbf·ft)8 mm SPECIAL BOLT8 mm SPRING WASHERSTARTER CABLE BRACKET B6 x 1.0 mm FLANGE BOLT
12 N·m (1.2 kgf·m, 8.7 lbf·ft)E-RING
Replace.WASHERSPRINGVEHICLE SPEED SENSOR (VSS) GEAR(4)(3)(2)(1)(12)(19)(20)(17)(18)(16)(15)(14)(13)(8)(9)(10)(11)(12)(6)(5)(7)(23)(22)(28)(29)(30)(31)(21)(26)(27)(24)(25)

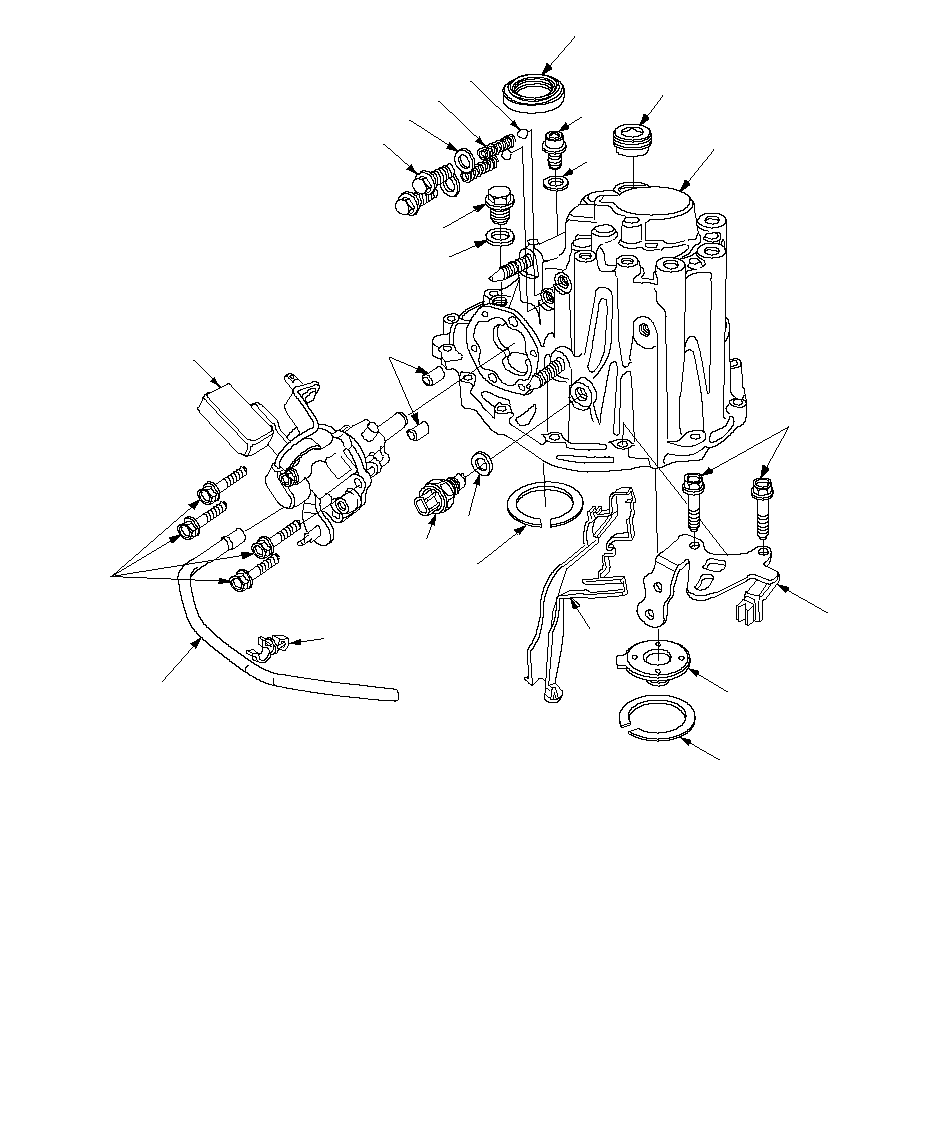

Exploded View-Transmission Housing

(1)(2)(3)(4)(5)(6)(7)(8)(10)(11)(12)(13)(14)(16)(17)(20)(21)(22)(23)8 mm FLANGE BOLT
27 N·m (2.8 kgf·m, 20 lbf·ft)8 x 10 mm DOWEL PIN35 x 56 x 8 mm OIL SEAL
Replace.DRAIN PLUG
39 N·m (4.0 kgf·m, 29 lbf·ft)FILLER PLUG
44 N·m (4.5 kgf·m, 33 lbf·ft)SET SCREW
22 N·m (2.2 kgf·m, 16 lbf·ft)STEEL BALL32 mm SEALING SCREW
25 N·m (2.5 kgf·m, 18 lbf·ft)TRANSMISSION HOUSINGTRANSMISSION HANGEROIL GUIDE PLATE C72 mm SHIMOIL GUTTER PLATE72 mm SHIMBACK-UP LIGHT SWITCH
29 N·m (3.0 kgf·m, 22 lbf·ft)BREATHER TUBE CLAMPBREATHER TUBE6 mm FLANGE BOLT
12 N·m (1.2 kgf·m, 8.7 lbf·ft)SHIFT LEVER ASSEMBLY20 mm WASHER
Replace.14 mm WASHER
Replace.(1)(2)(3)(4)(5)(6)(7)(8)(9)(10)(11)(12)(13)(14)(15)(16)(17)(18)(19)(20)(21)(22)(23)(24)(9)(18)(19)(24)12 mm WASHER
Replace.SPRING18 mm WASHER
Replace.(15)

NOTE: Place the clutch housing on two pieces of wood thick enough to keep the mainshaft from hitting the workbench.

1.	Remove the set screws (A), 12 mm washers, springs, steel balls and back-up light switch (B). AB

2.	Remove the shift lever assembly (A) and 8 x 10 mm dowel pins (B). BA

3.	Remove the drain plug (A), filler plug (B), vehicle speed sensor (VSS) (C) and O-rings (D). ABDC

4.	Remove the 8 mm flange bolts (A) and transmission hanger (B) in a crisscross pattern in several steps. BA

5.	Remove the 32 mm sealing screw (A). ABCD

6.	Expand the 52 mm snap ring (B) on the countershaft ball bearing, and remove it from the groove using a pair of snap ring pliers.

7.	Remove the transmission housing (C) and 14 x 20 mm dowel pins (D).

8.	Remove the reverse idler gear (A) and reverse gear shaft (B). BA

9.	Remove the reverse shift fork.

10.	Remove the reverse lock cam.

11.	Tape the mainshaft splines, then remove the mainshaft assembly (A) and countershaft assembly (B) with the shift forks (C) from the clutch housing (D). AFEHGDBC

12.	Remove the 8 mm special bolt (E) and 8 mm spring washer (F).

13.	Remove the 36 mm spring washer (G) and 26 mm washer (H).

14.	Remove the differential assembly (A), and magnet (B). AB

15.	Remove the oil gutter plate (A), oil guide plate M (B), and 72 mm shim (C). CBA
