Honda Jazz/Fit 2002 · Service Manual

Emblem/Sticker Replacement

Emblem/Sticker Replacement

NOTE: When removing the emblem/sticker, take care not to scratch the body.

1.To remove the front ‘‘H'' emblem, remove the front grille.

2.To remove the rear ‘‘H'' emblem, remove the rear license trim.

3.Clean the body surface with a sponge dampened in alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

4.Apply the emblem/sticker, where shown.



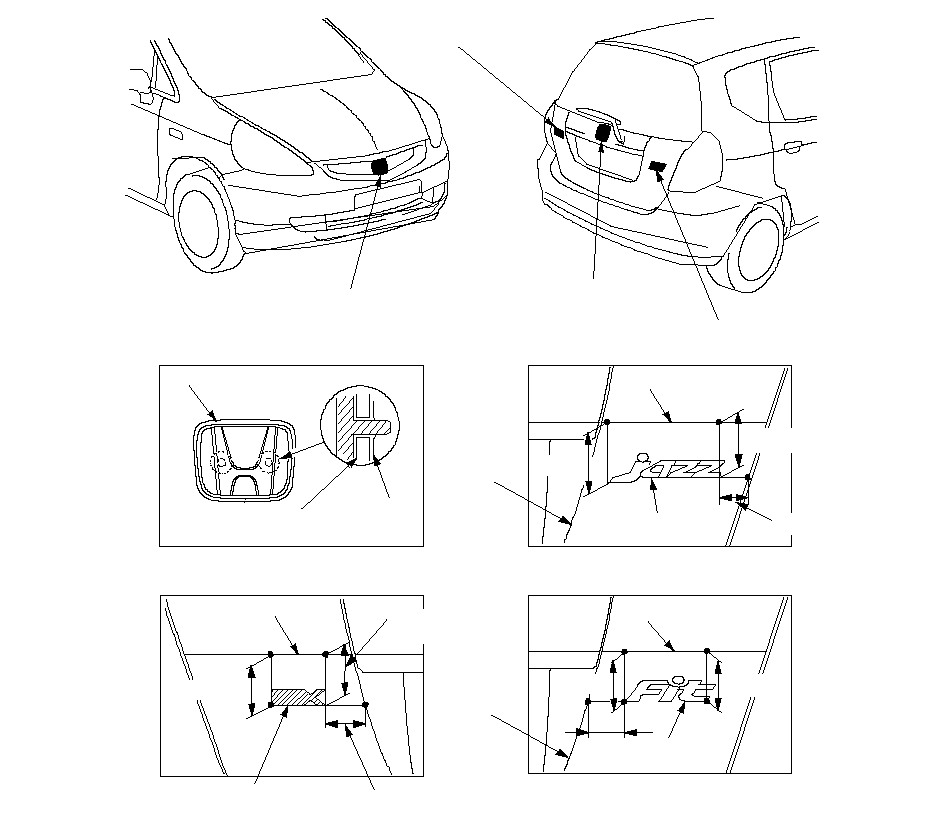

SAA2E00J18500024101KBAD02VERSION EMBLEM
(For some models)FRONT ''H'' EMBLEMREAR ''H''
EMBLEMJAZZ/Fit EMBLEMBody line.67.5
(2.66)VERSION
EMBLEMUnit: mm (in.)FRONT/REAR ''H'' EMBLEMFRONT GRILLE/REAR
LICENSE TRIMPUSH
NUTBody line.Body line.75 (3.0)JAZZ
EMBLEM70 (2.76)45 (1.8)59 (2.3)70 (2.8)Body line.Fit
EMBLEMBody line.70 (2.8)70 (2.8)70 (2.8)


5.After installing the front ‘‘H'' emblem, reinstall the front grille to the front bumper, and reinstall the front bumper.

6.After installing the rear ‘‘H'' emblem, reinstall the rear license trim.
